Kia EV9 RWD Standard Range Tech Specs

from: 2023

other variants:

Compare all variants side by side

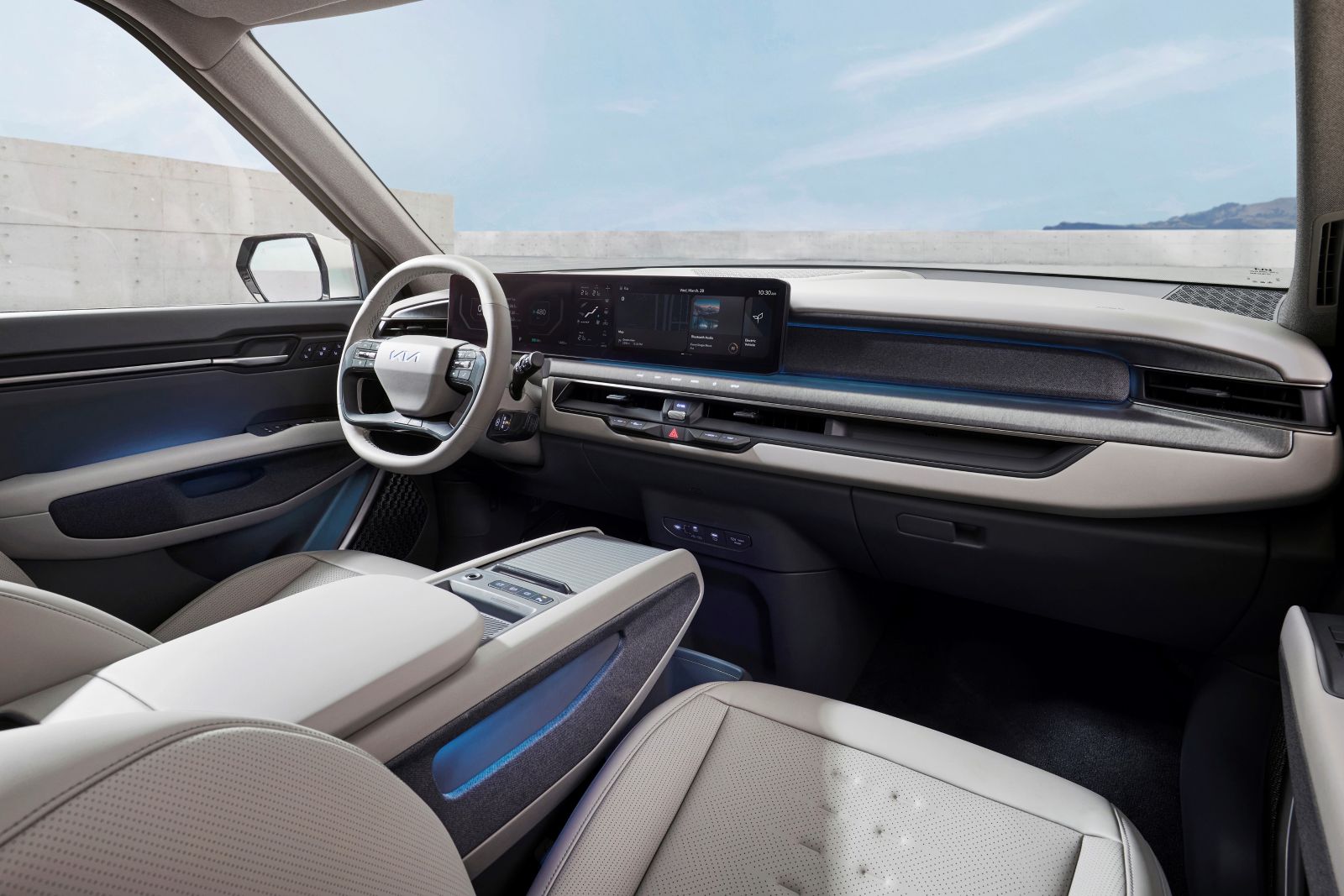

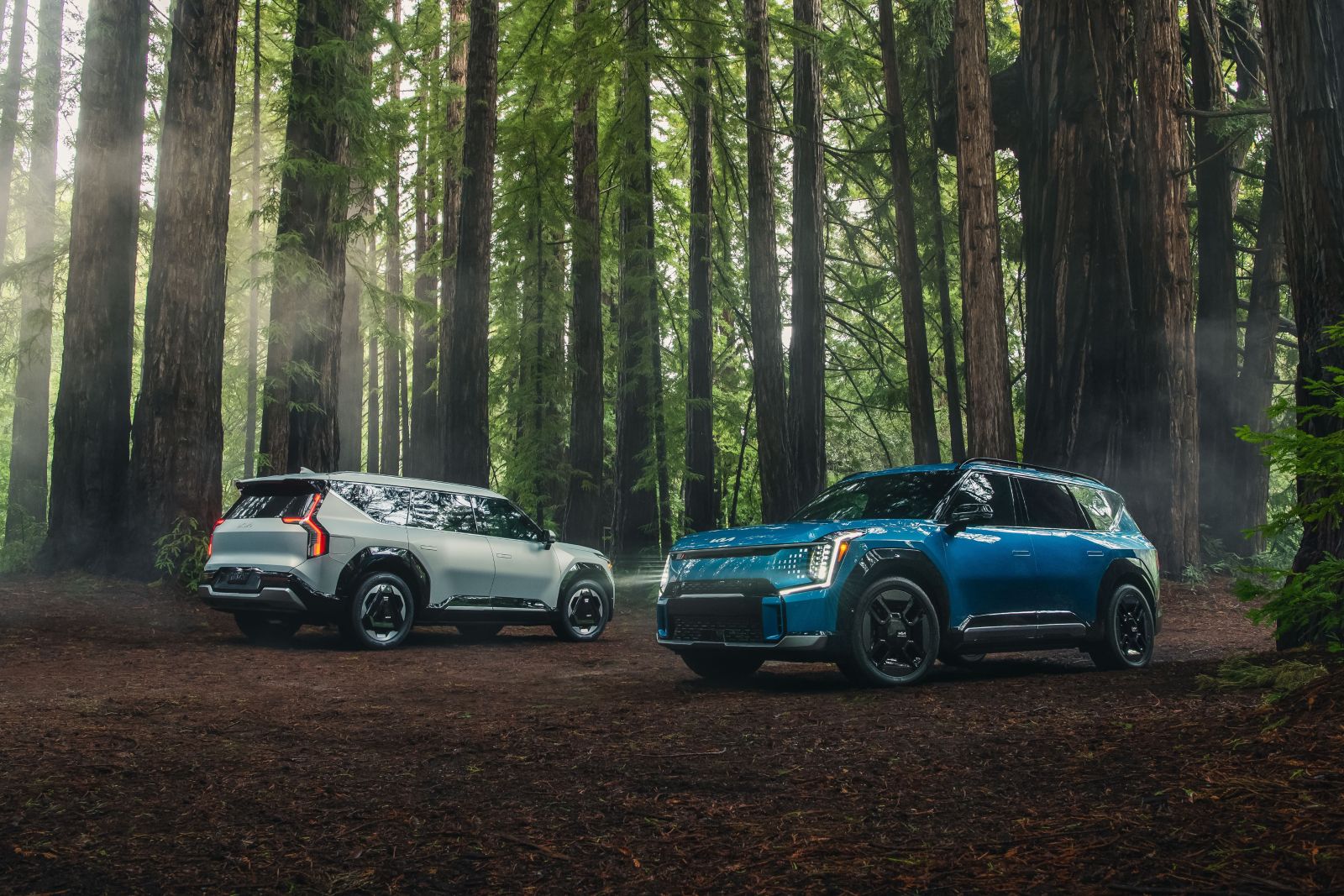

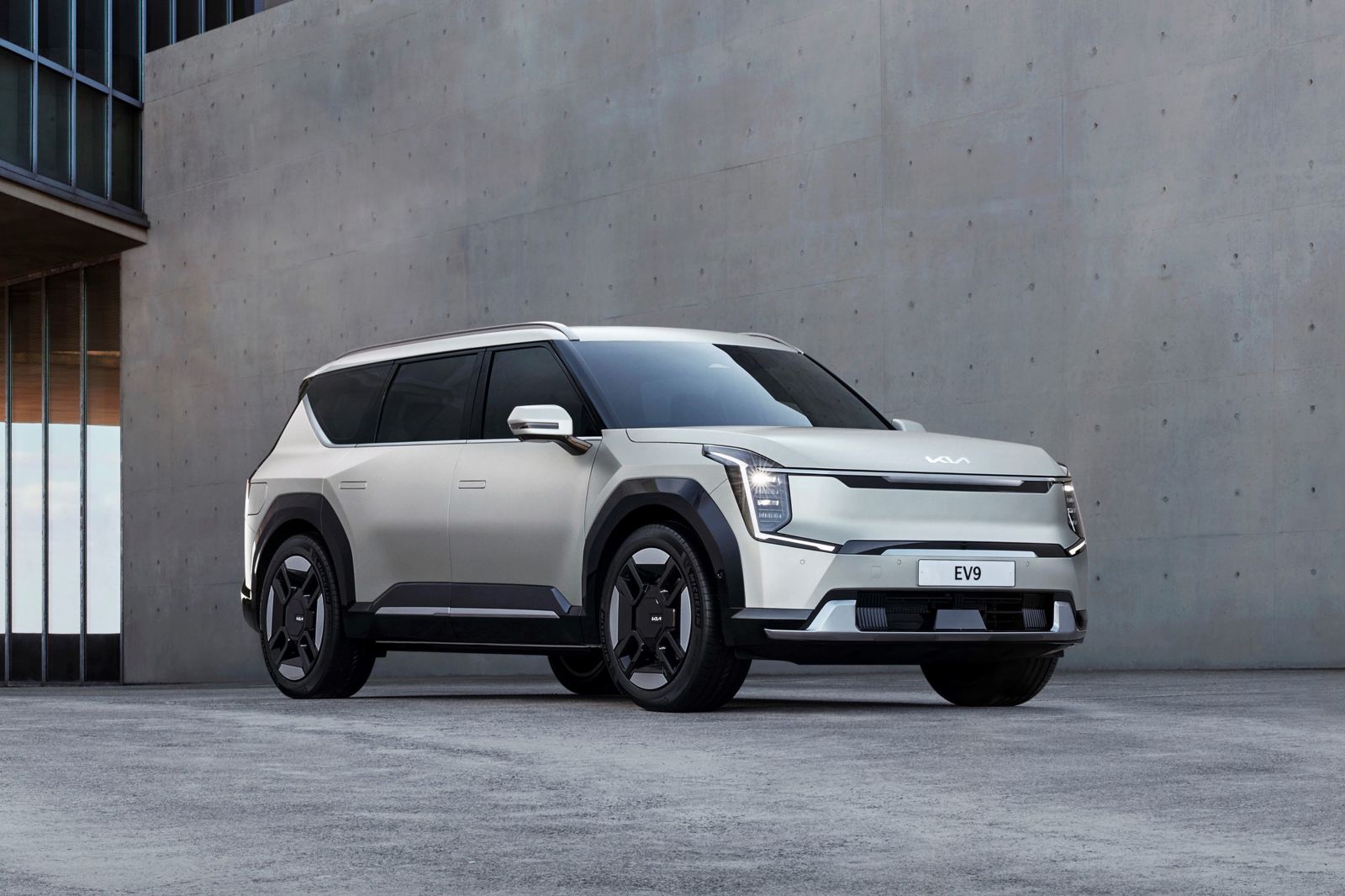

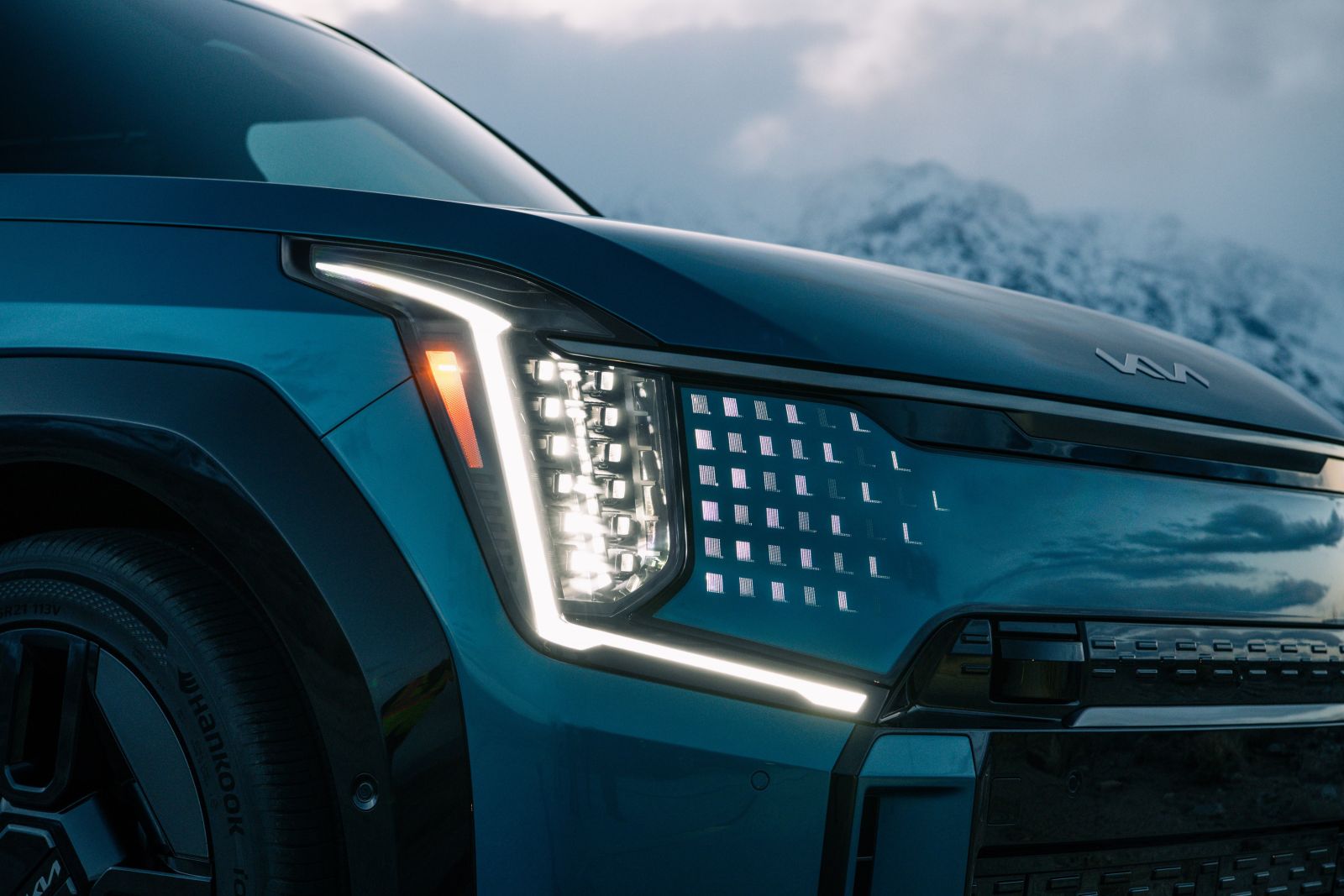

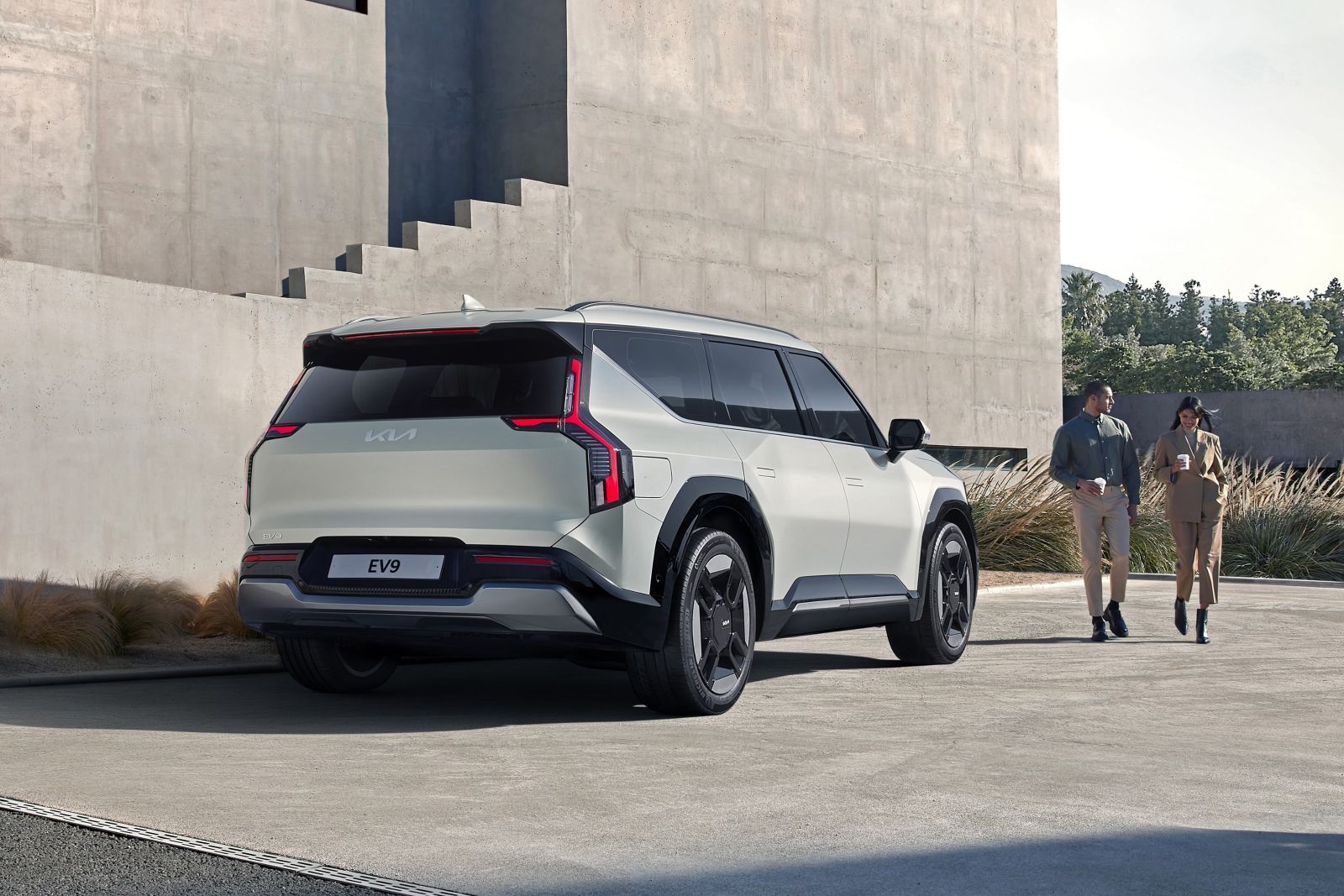

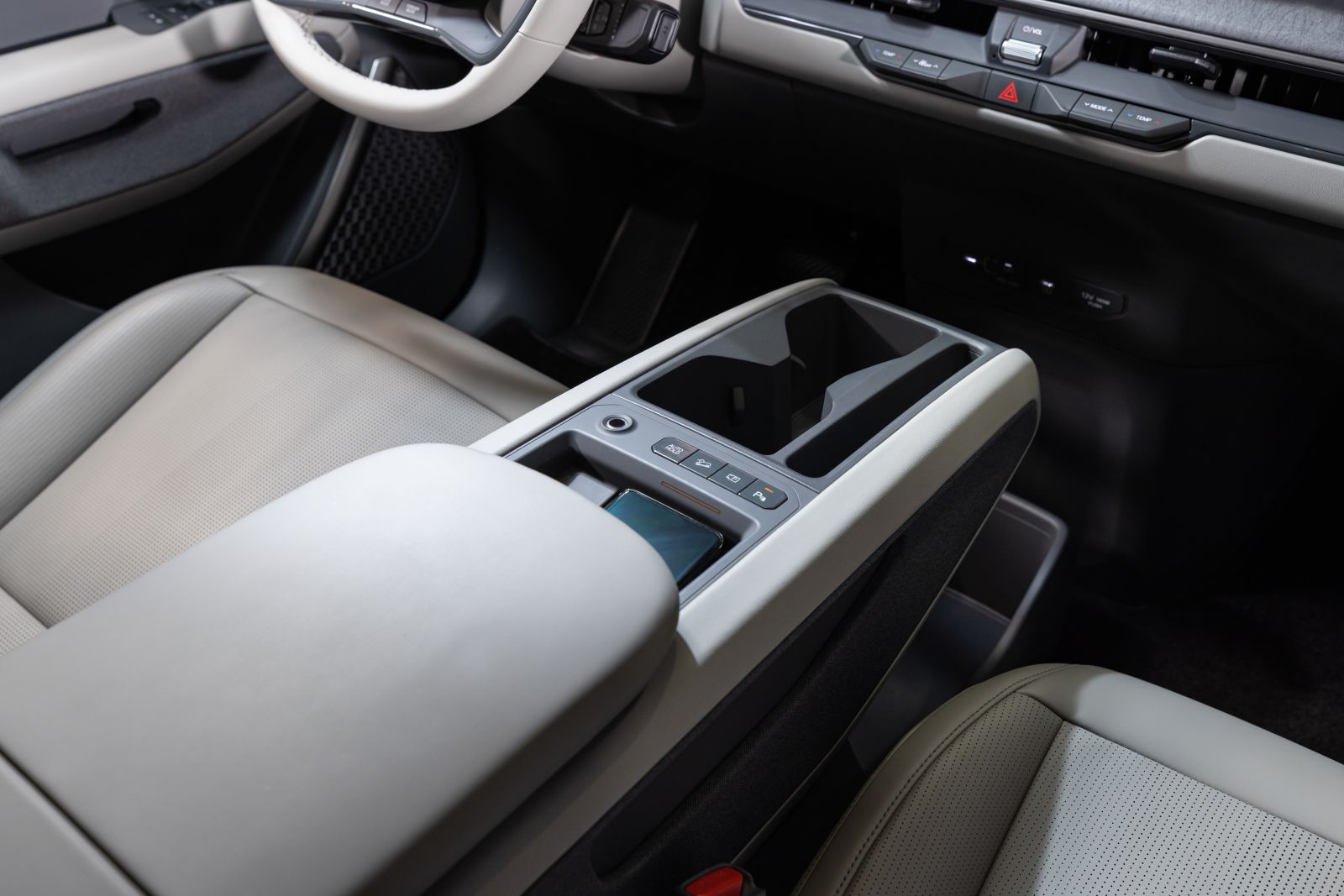

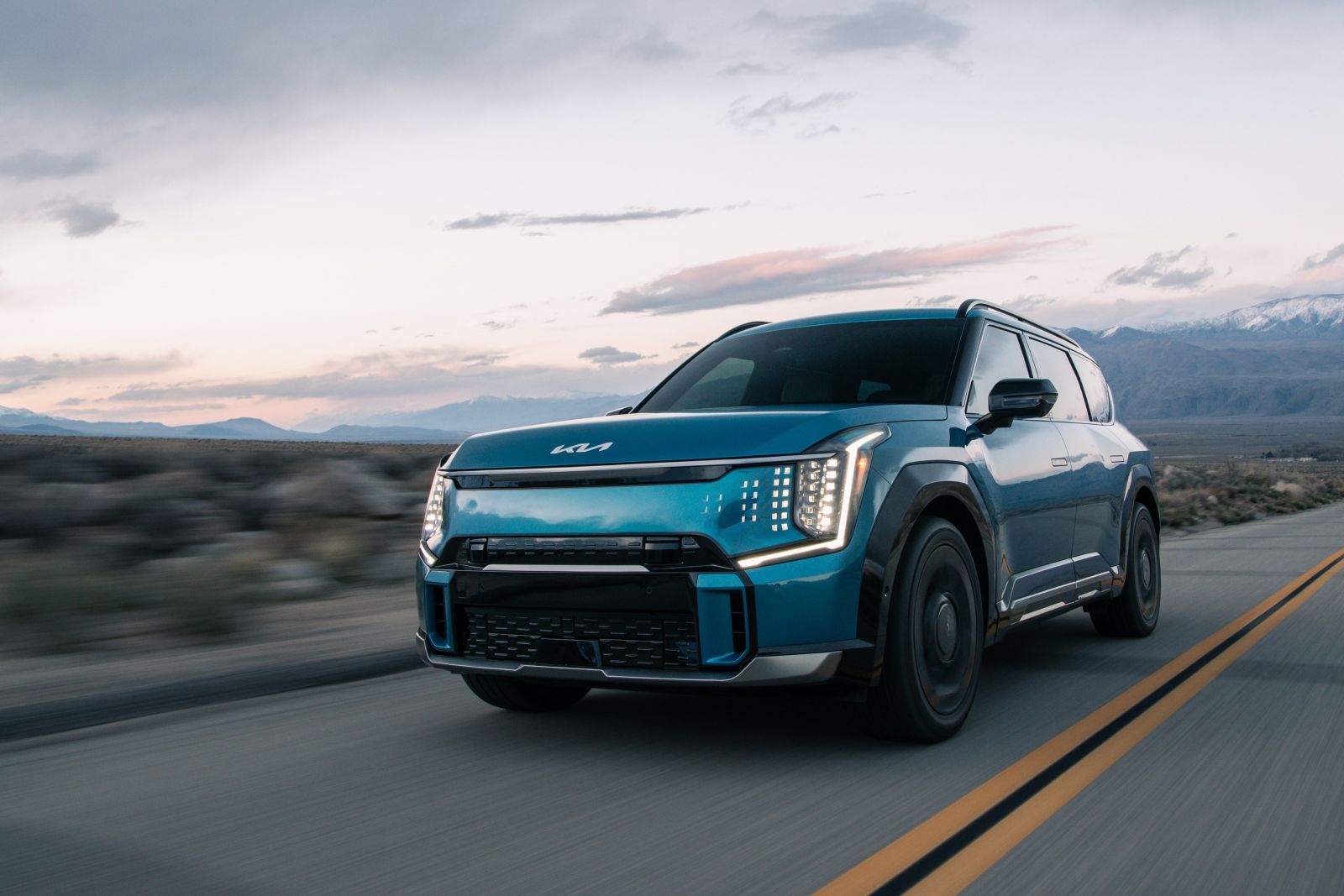

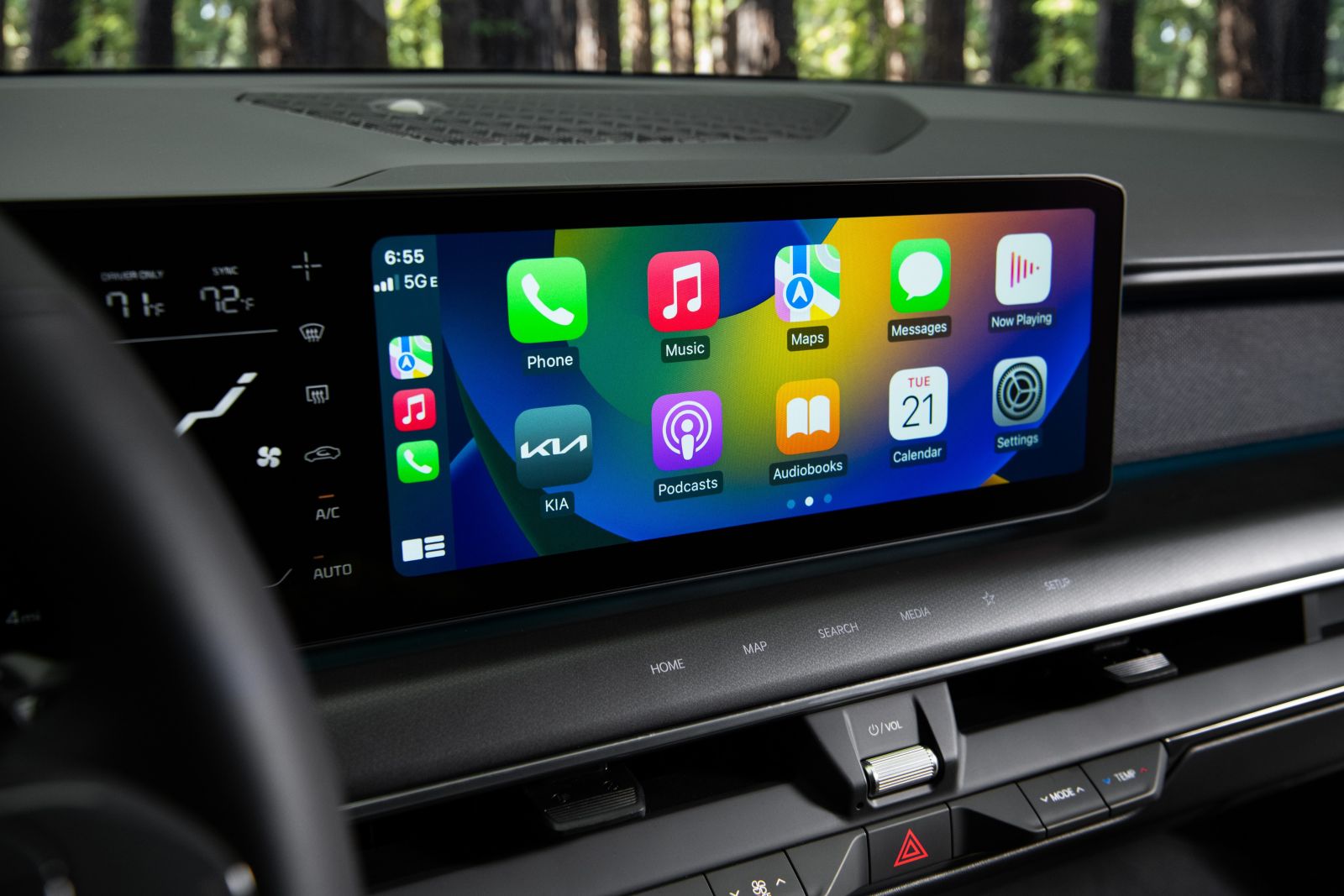

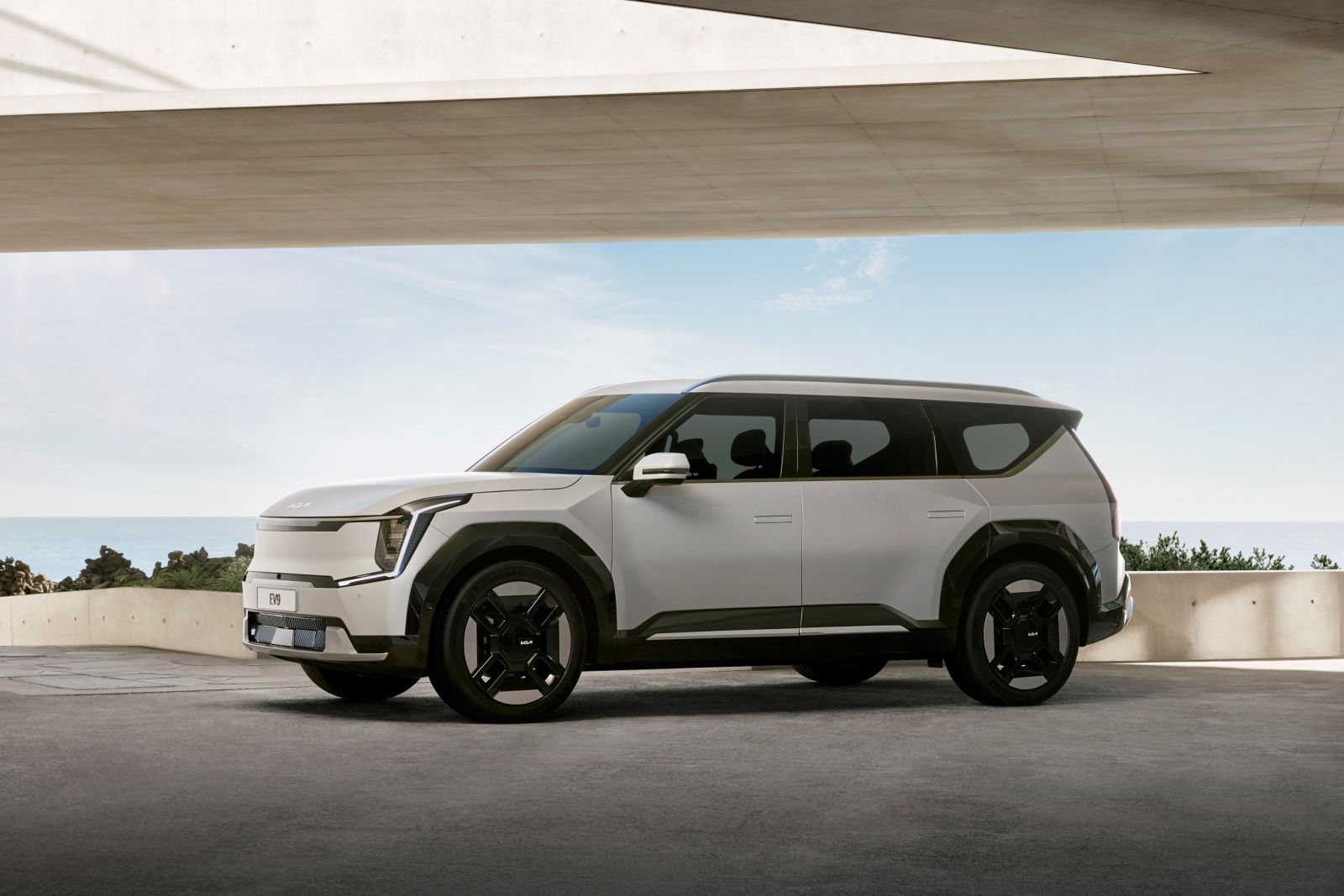

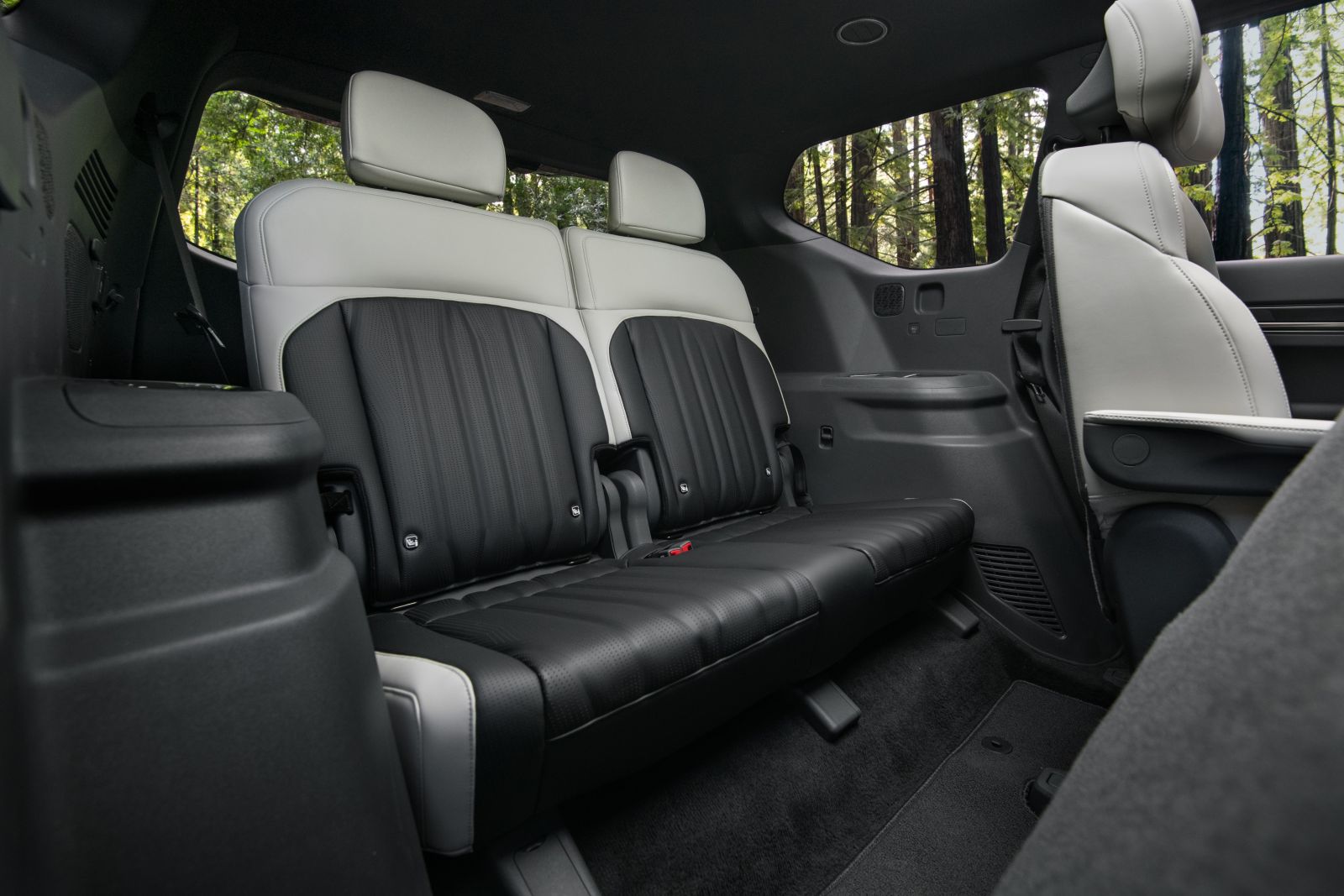

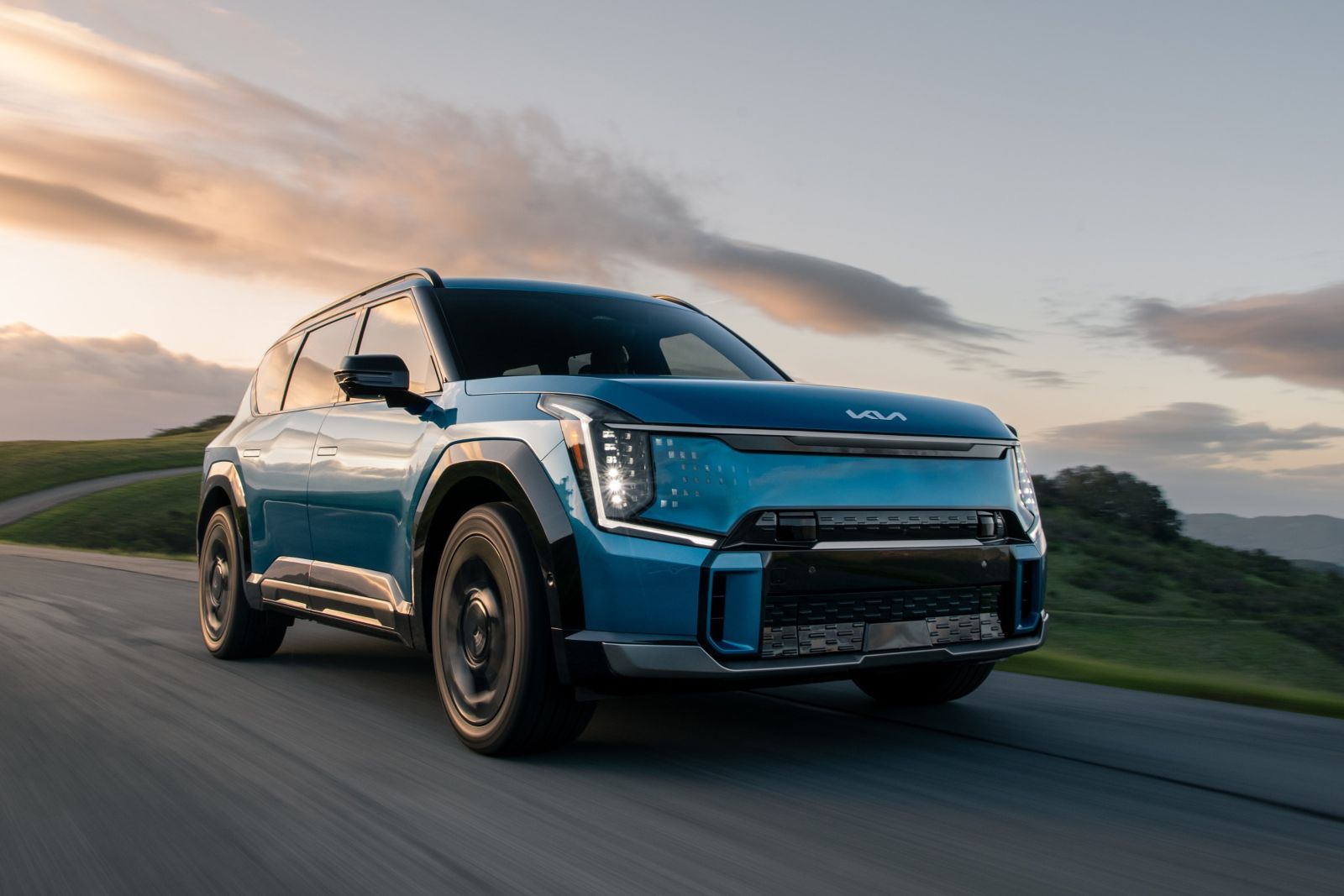

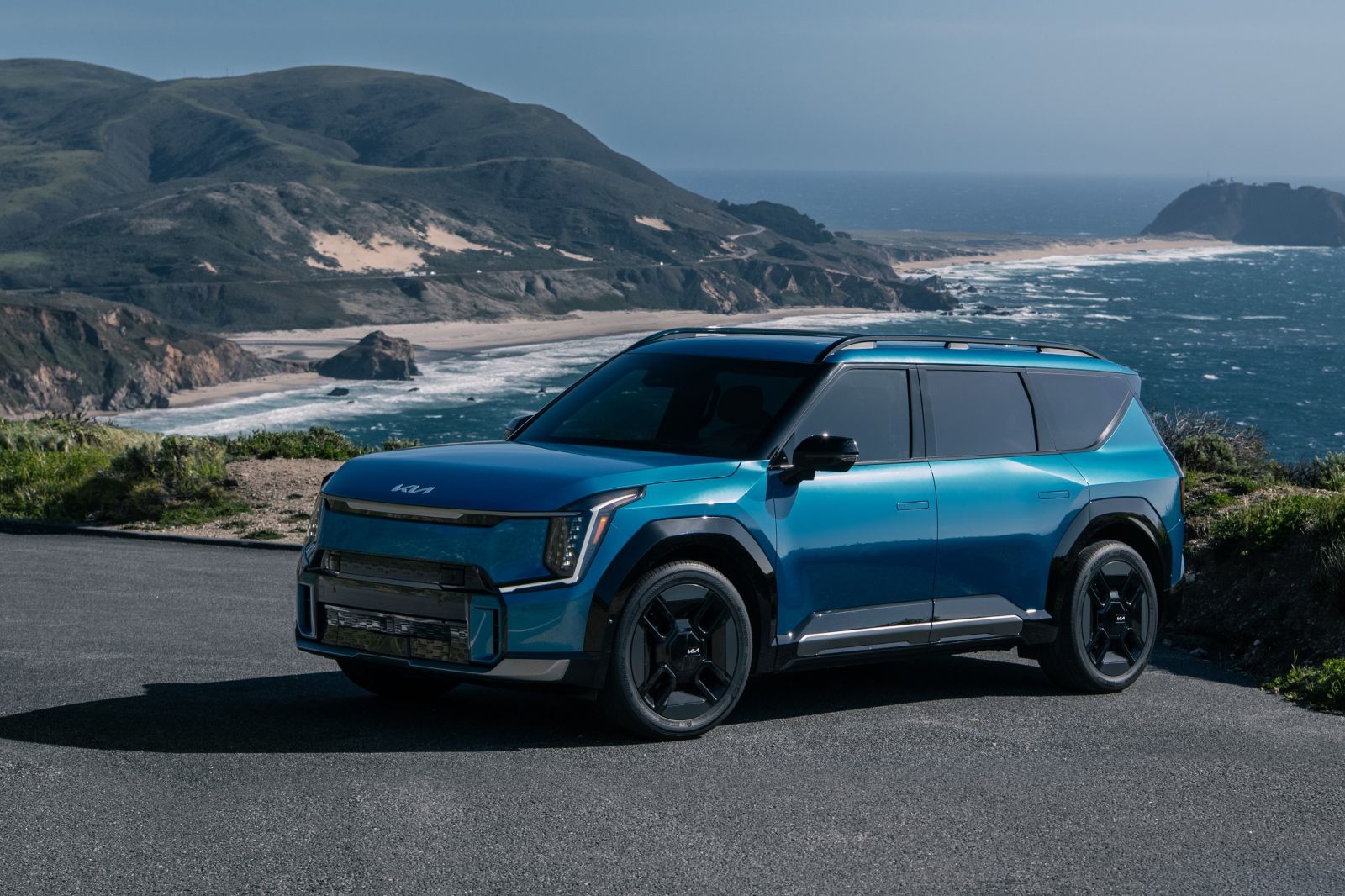

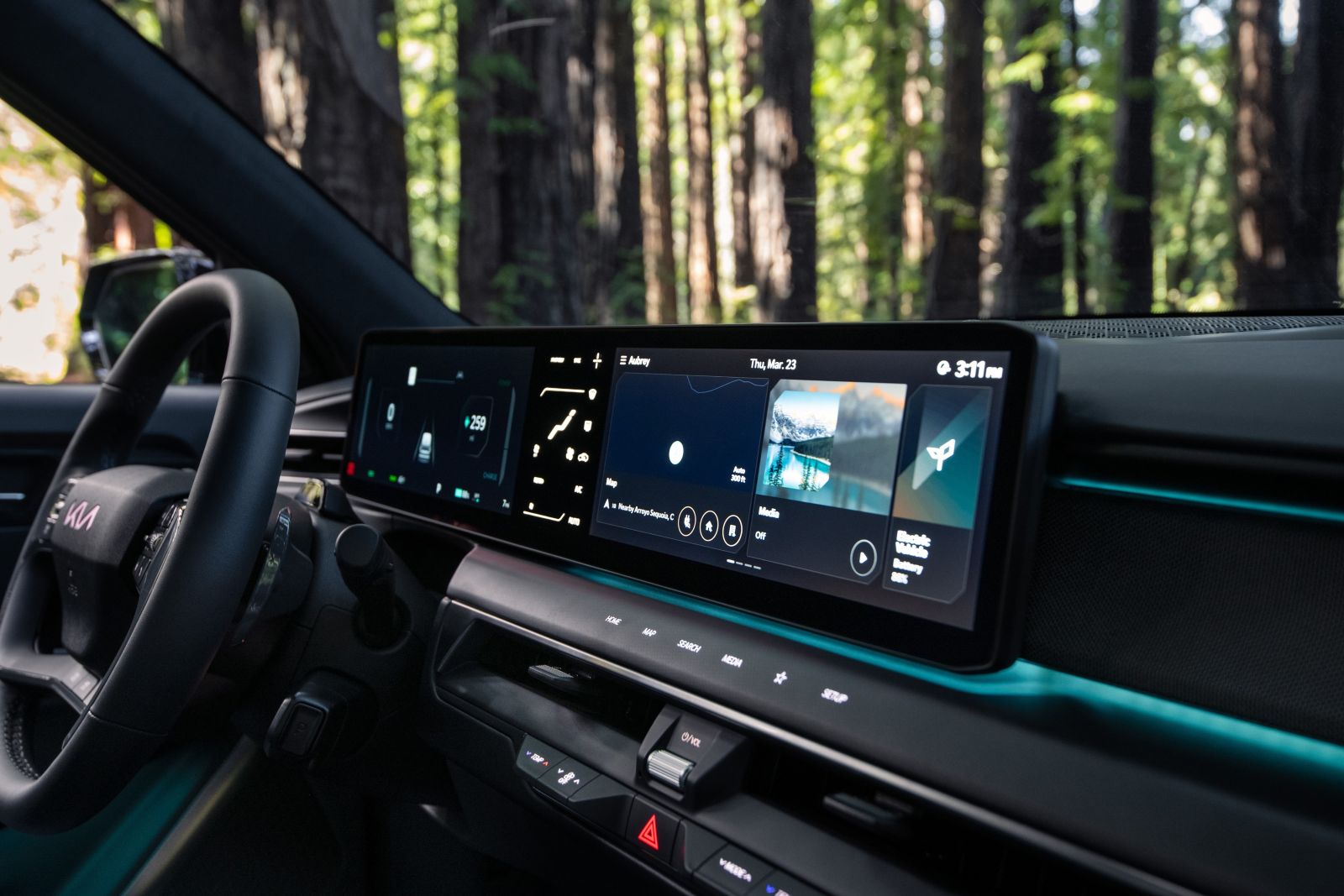

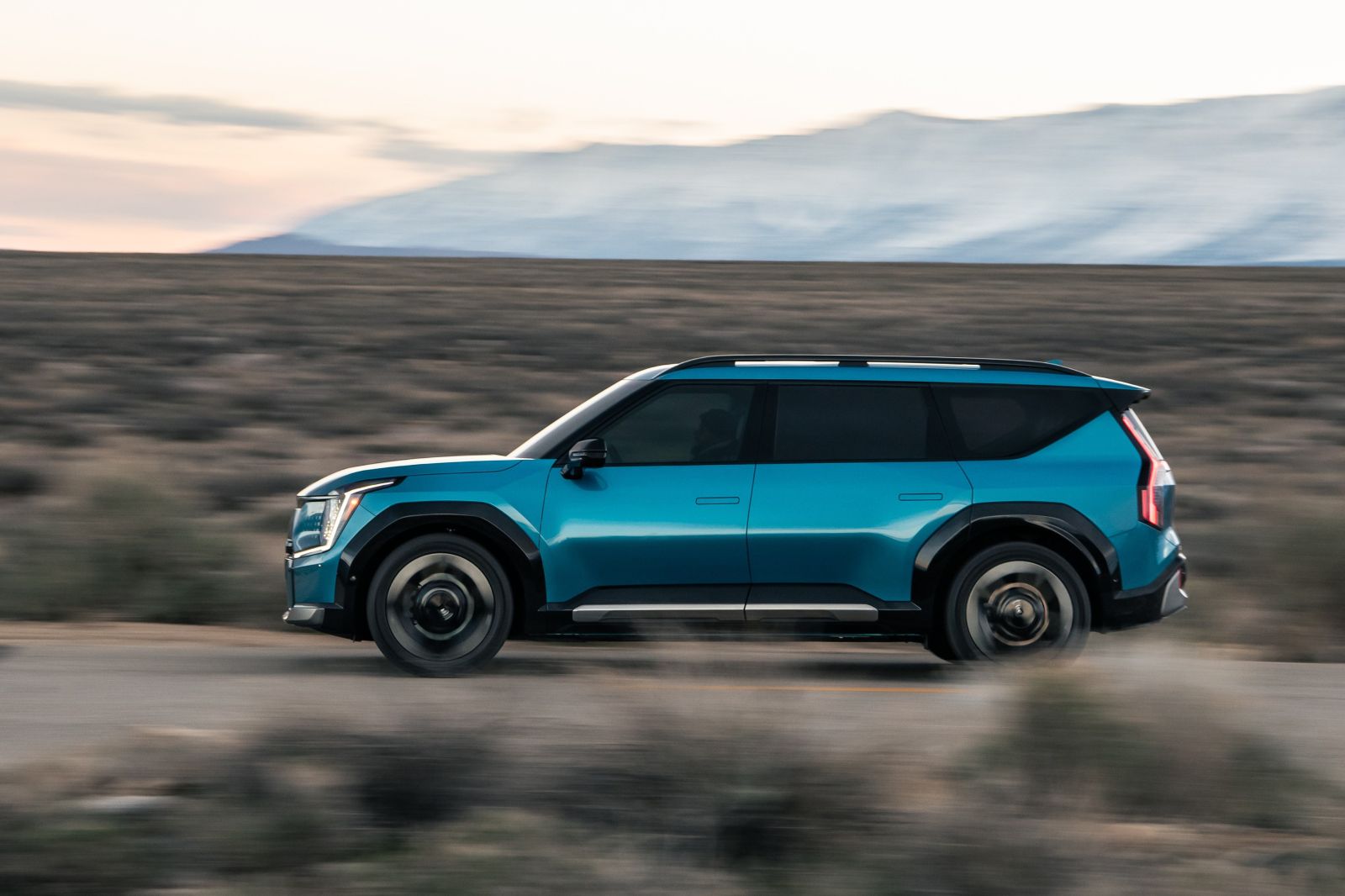

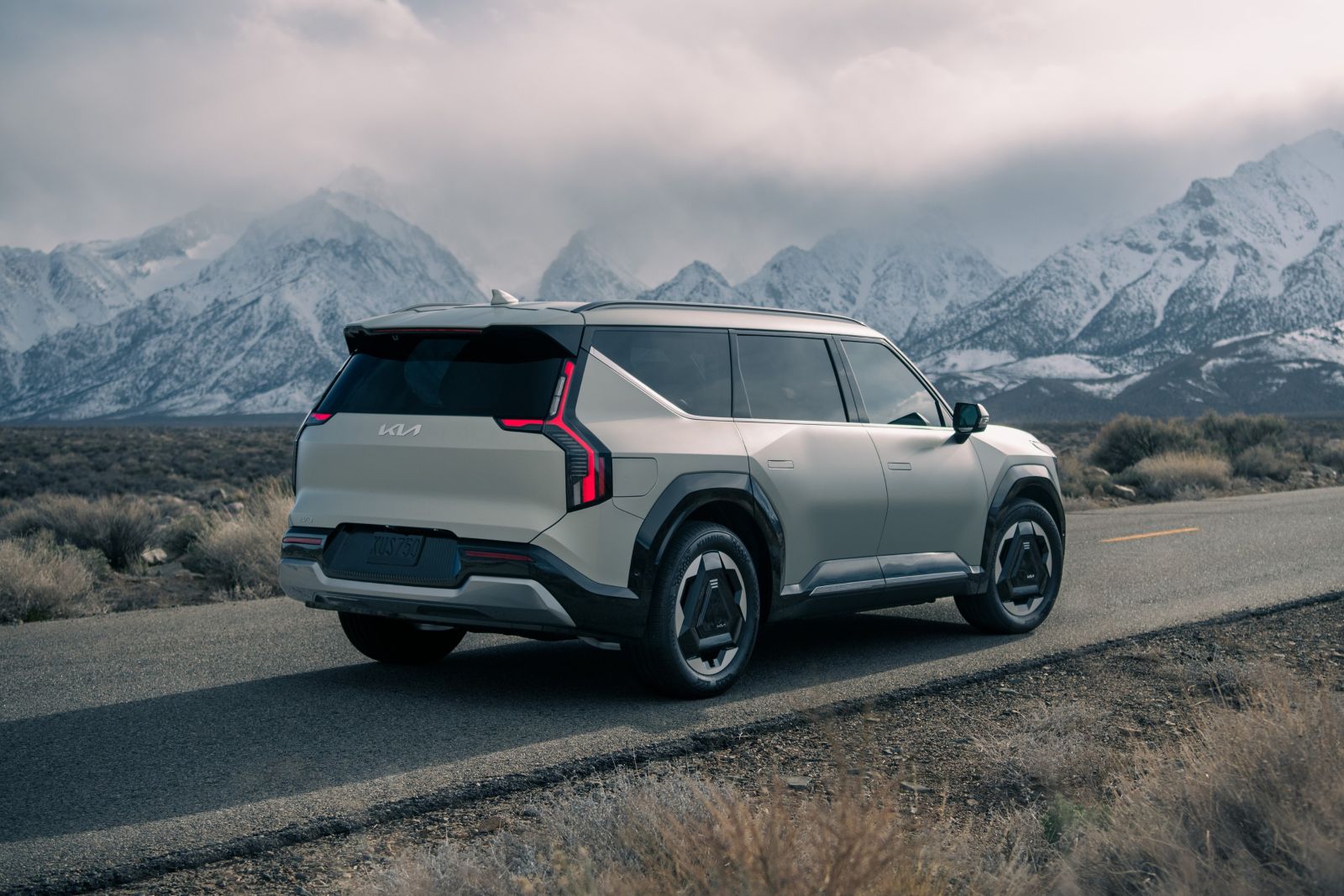

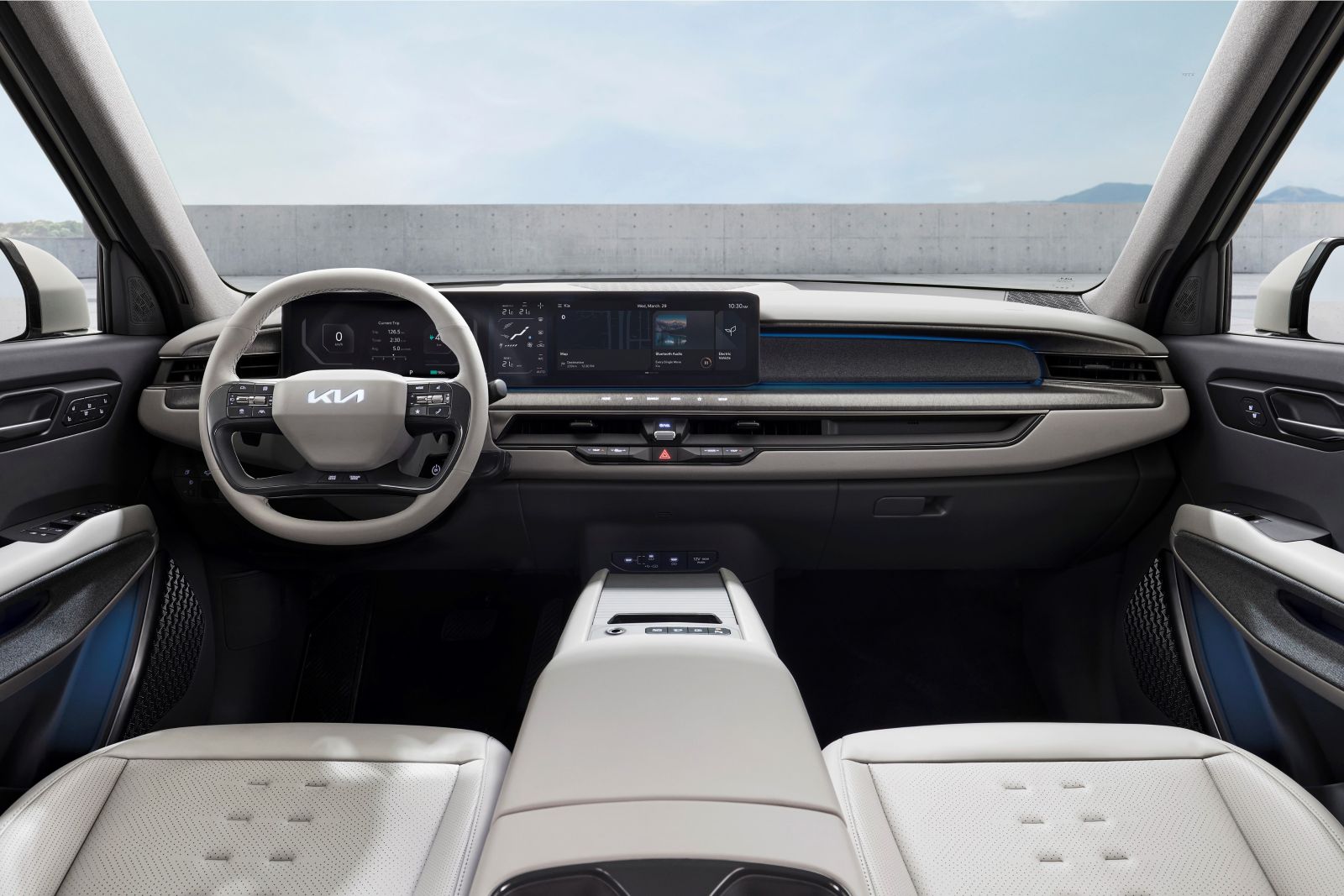

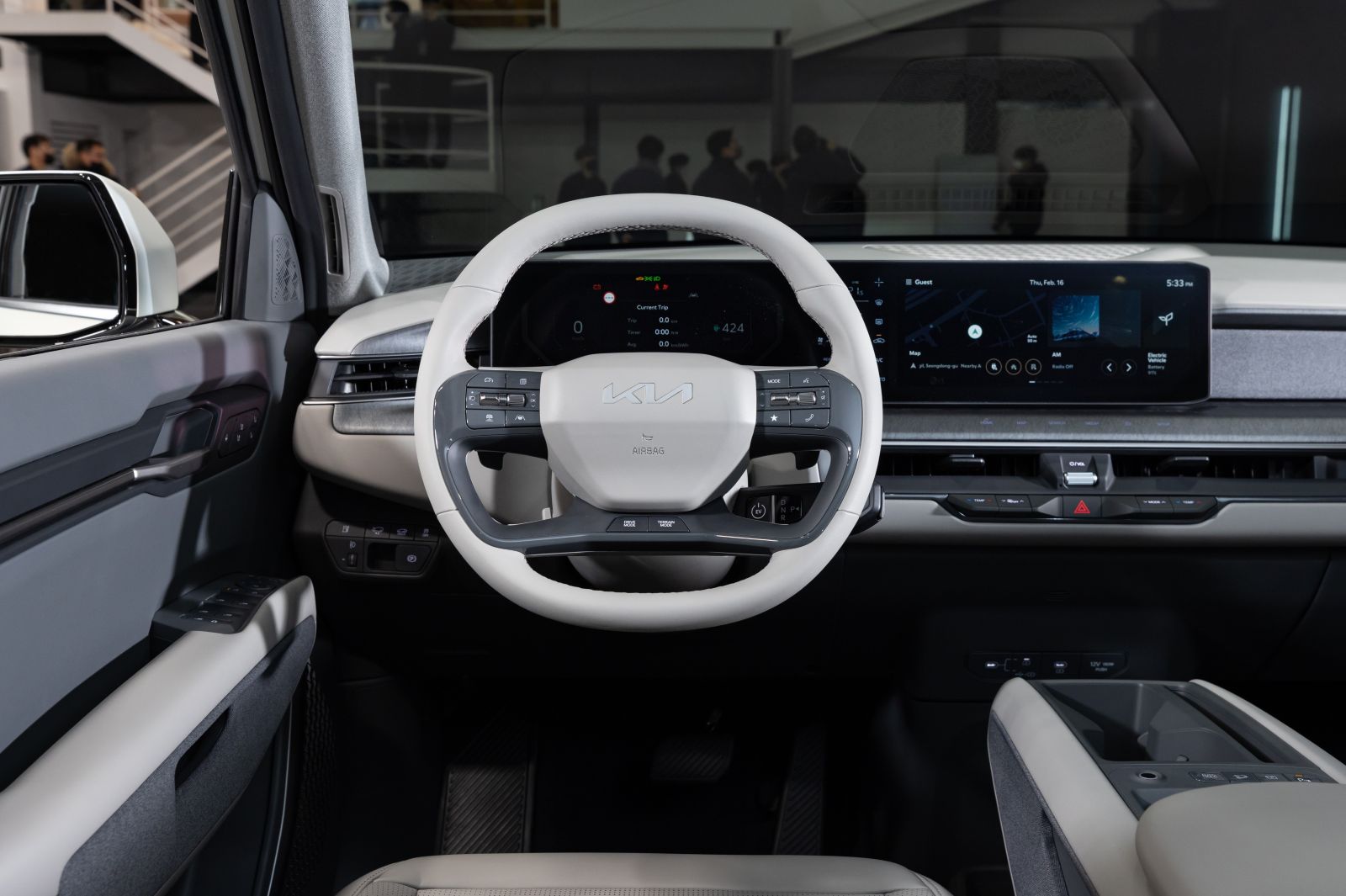

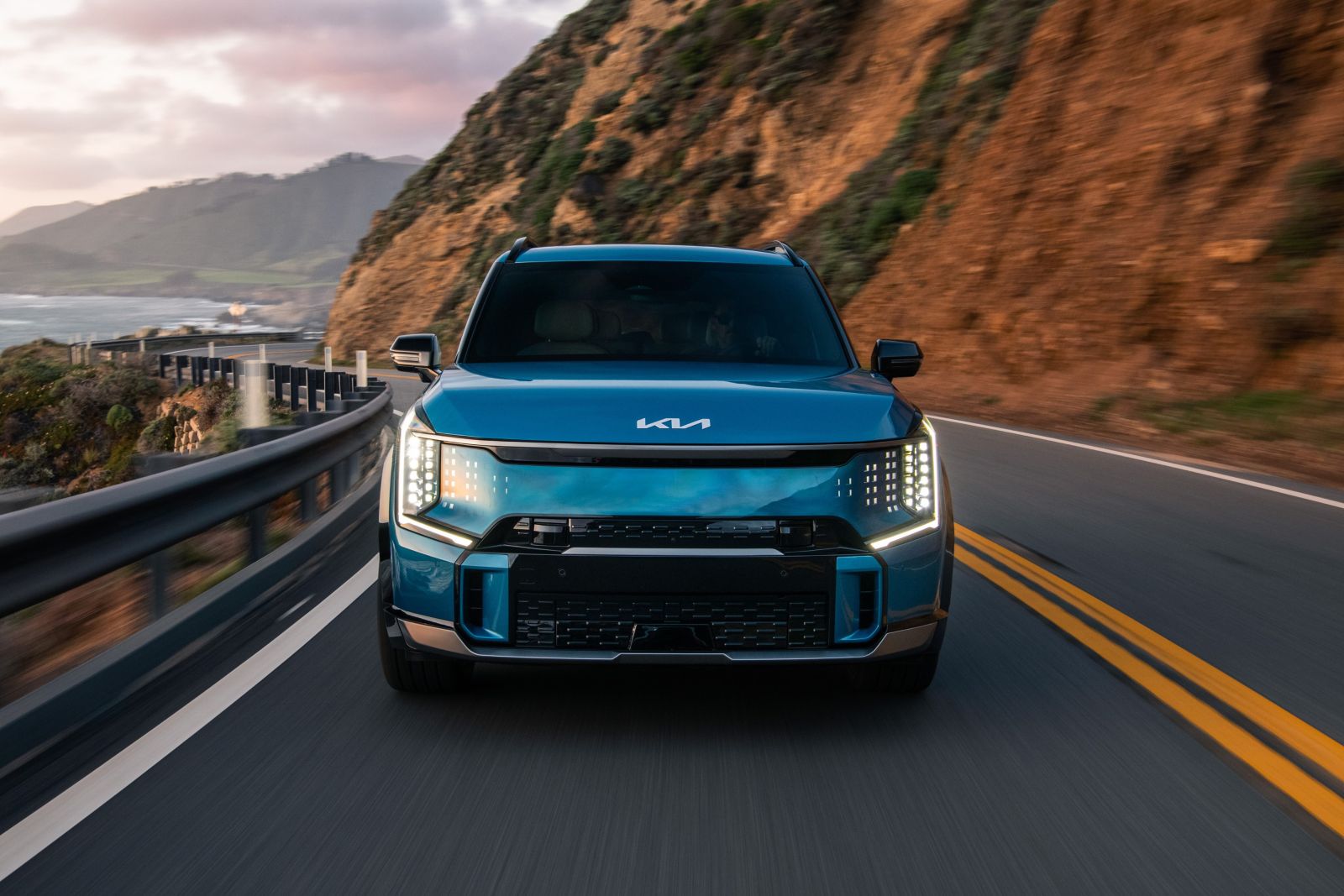

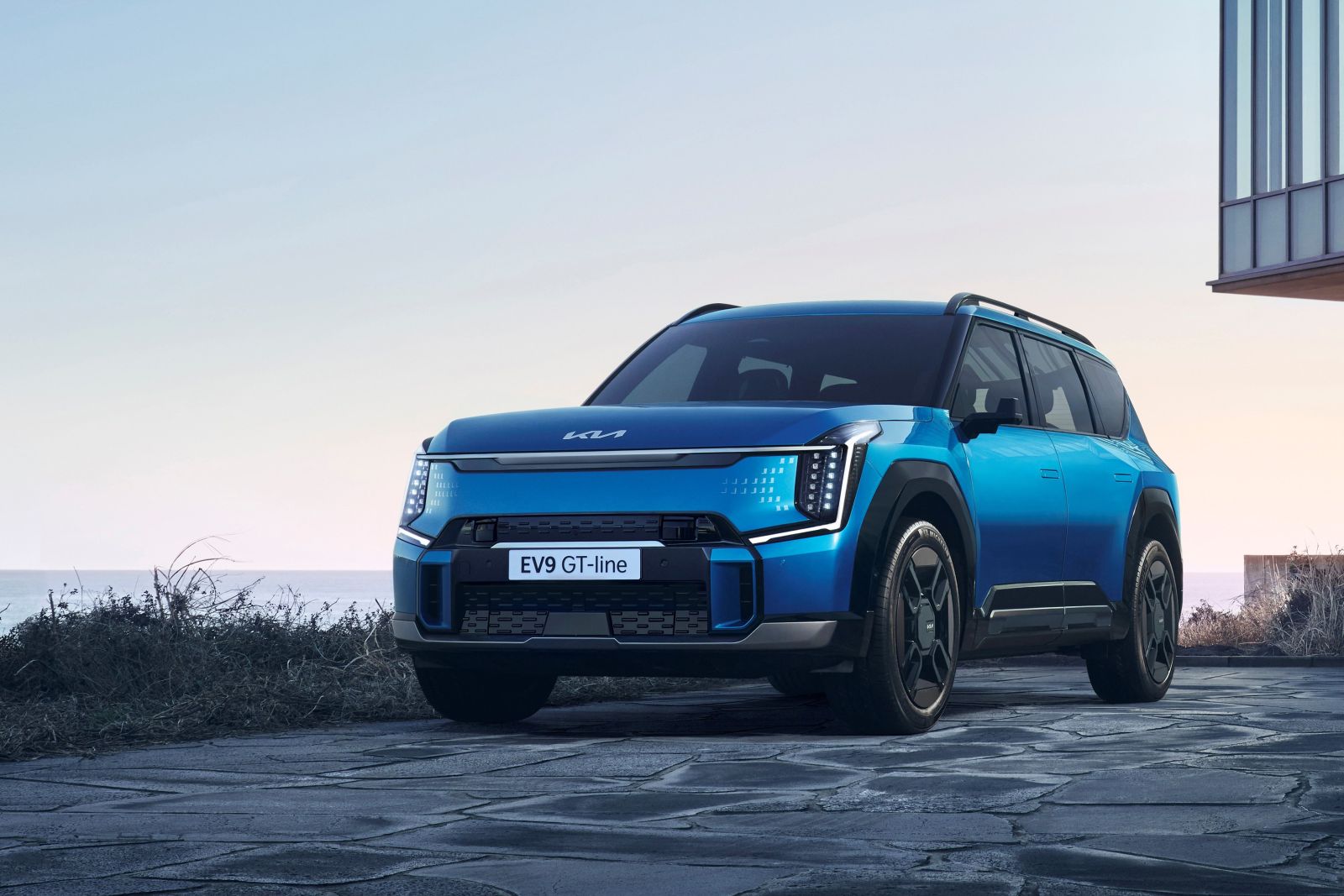

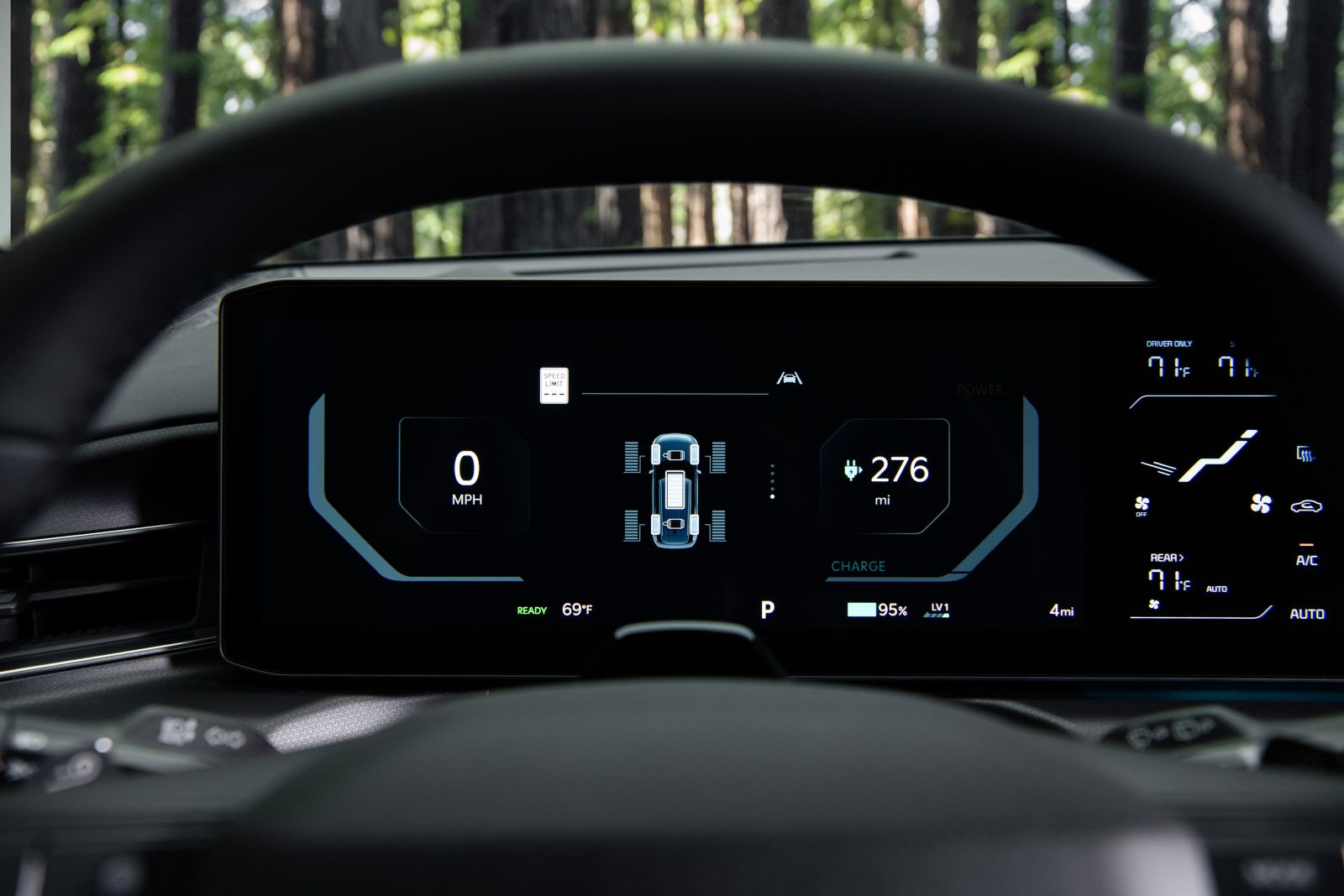

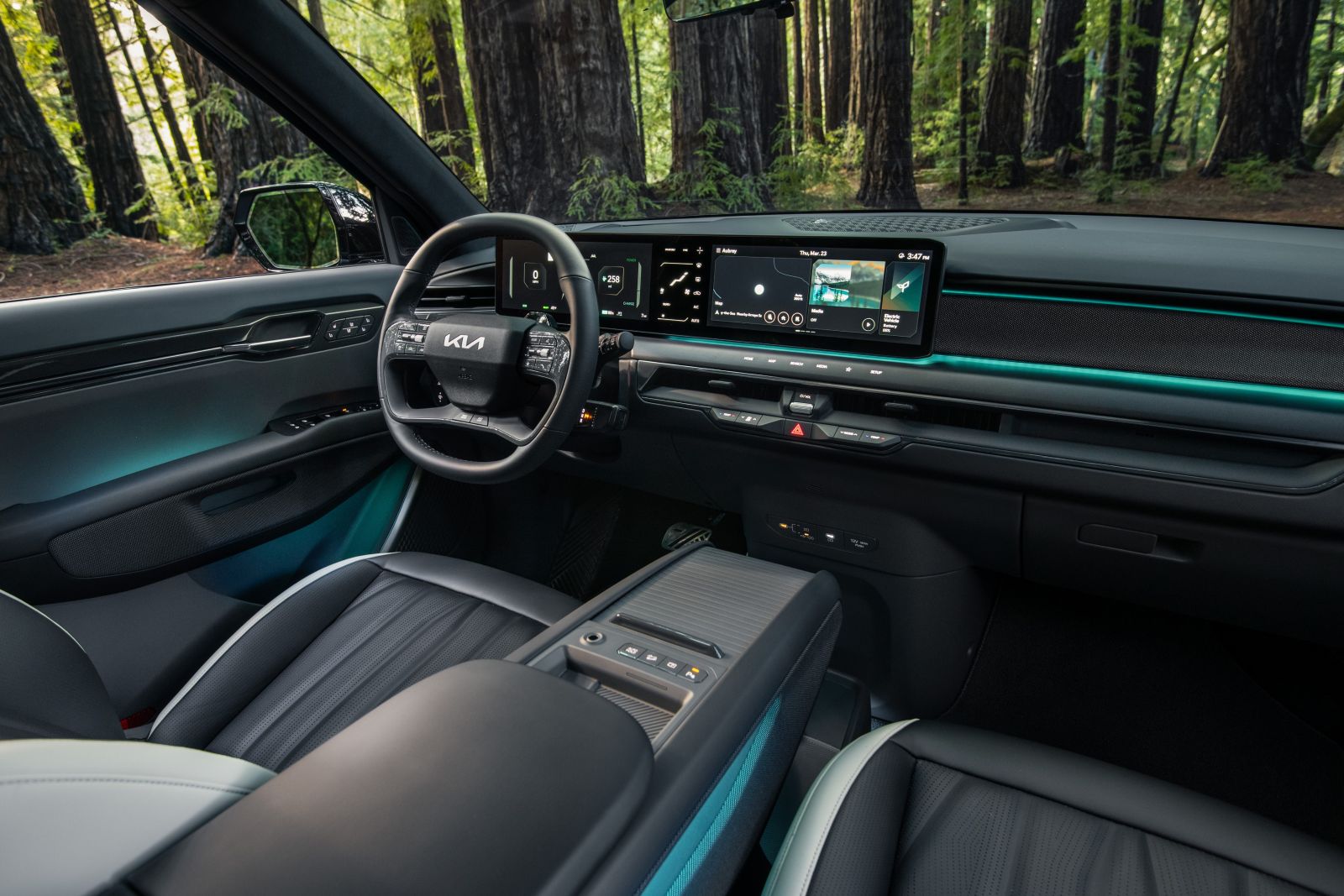

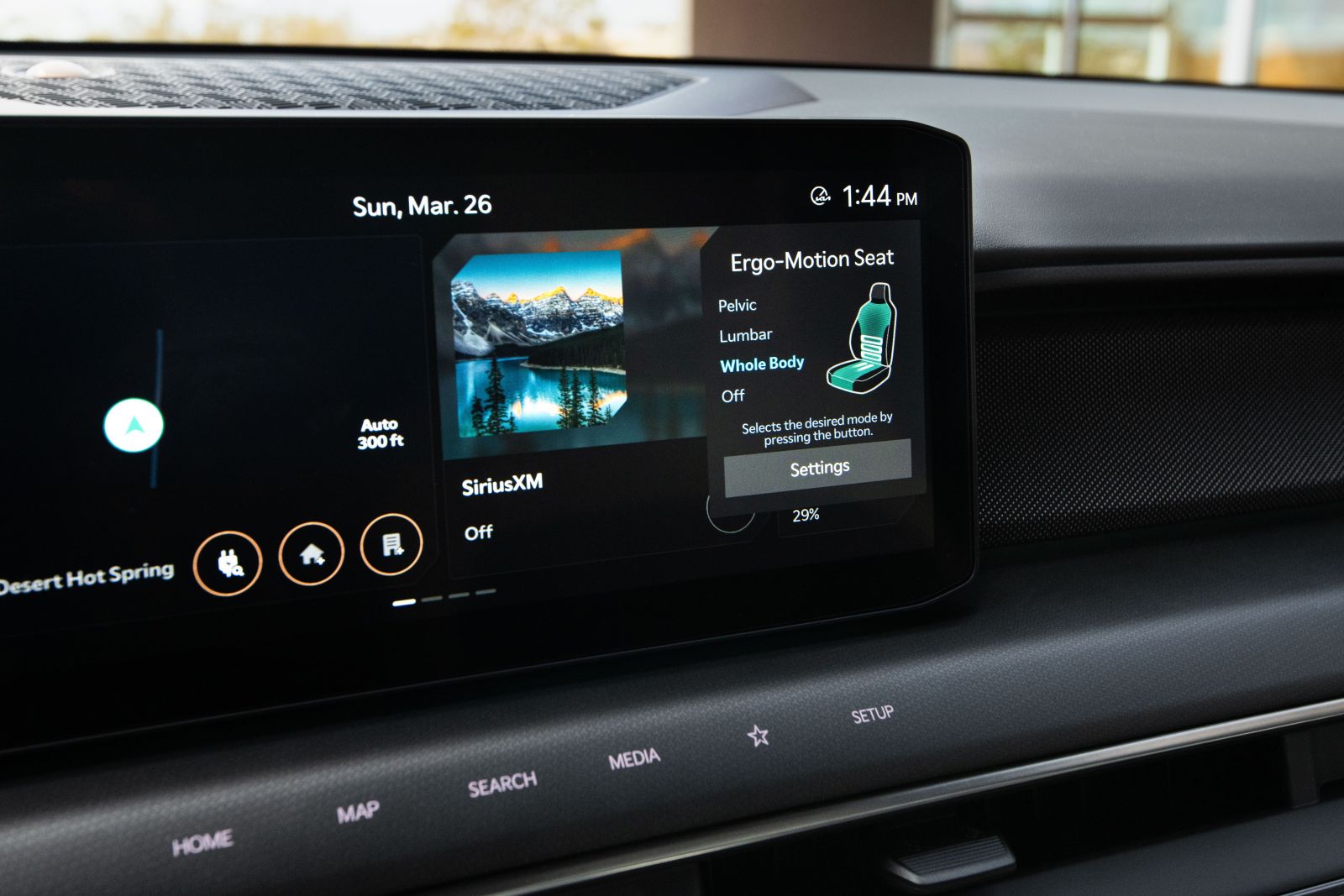

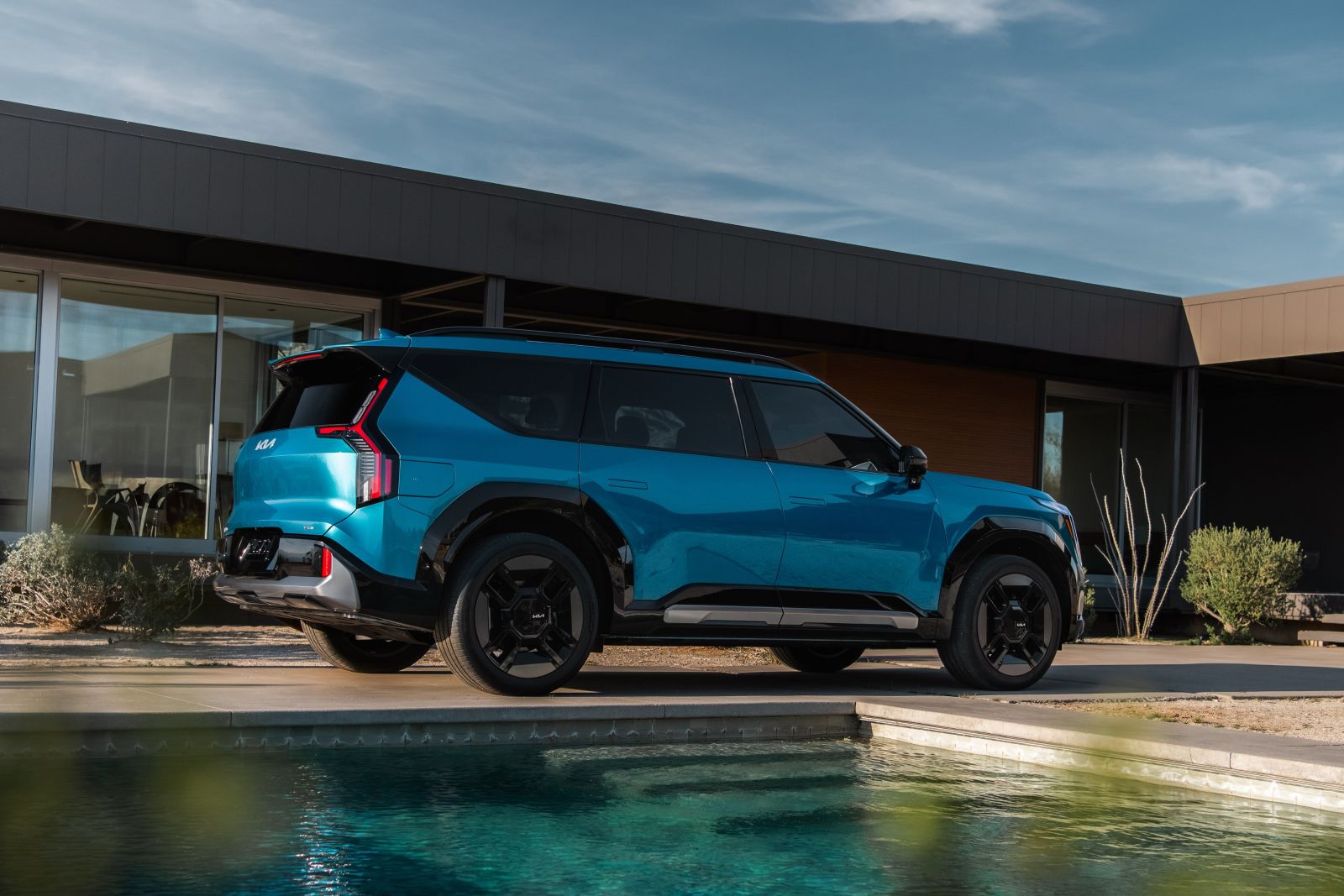

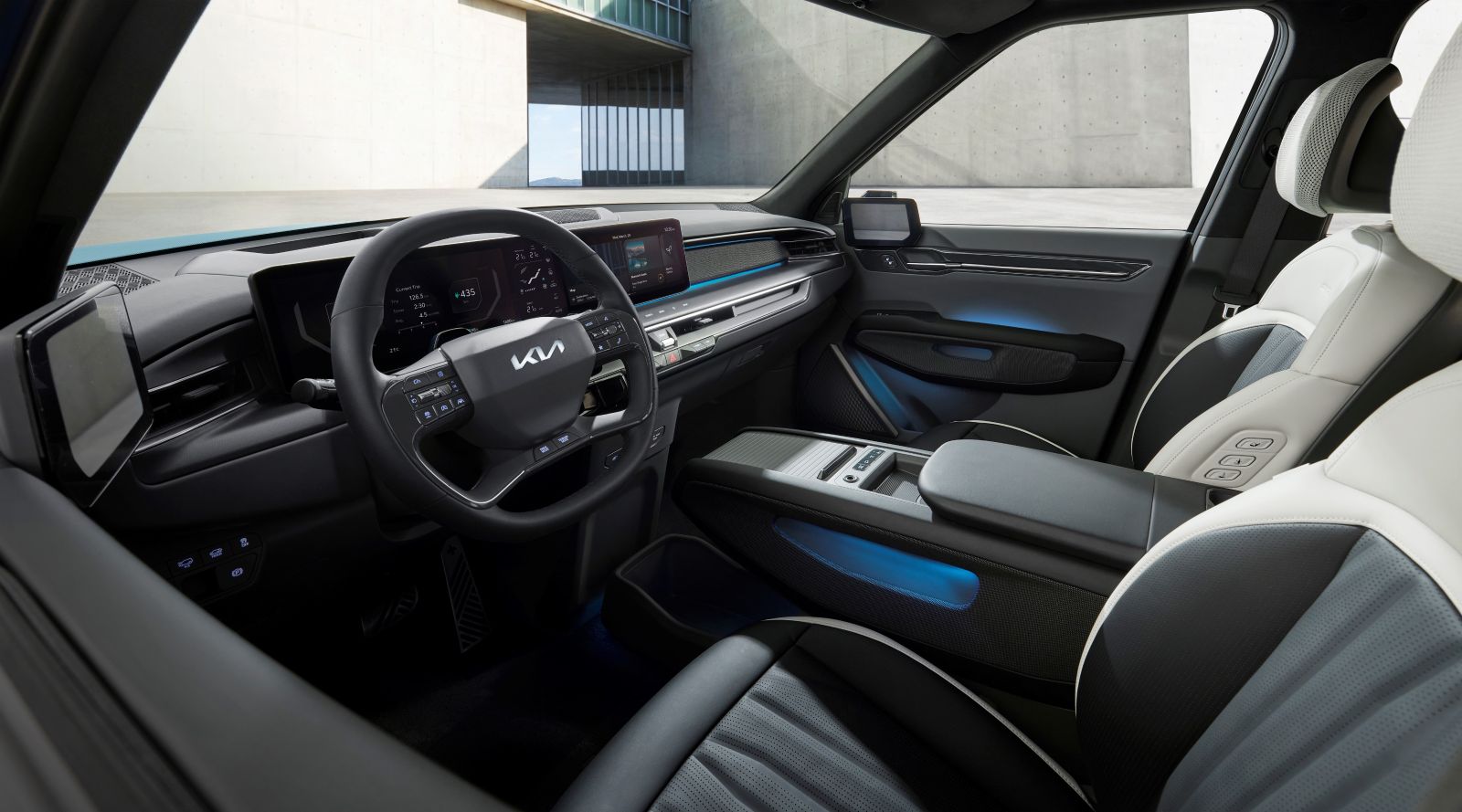

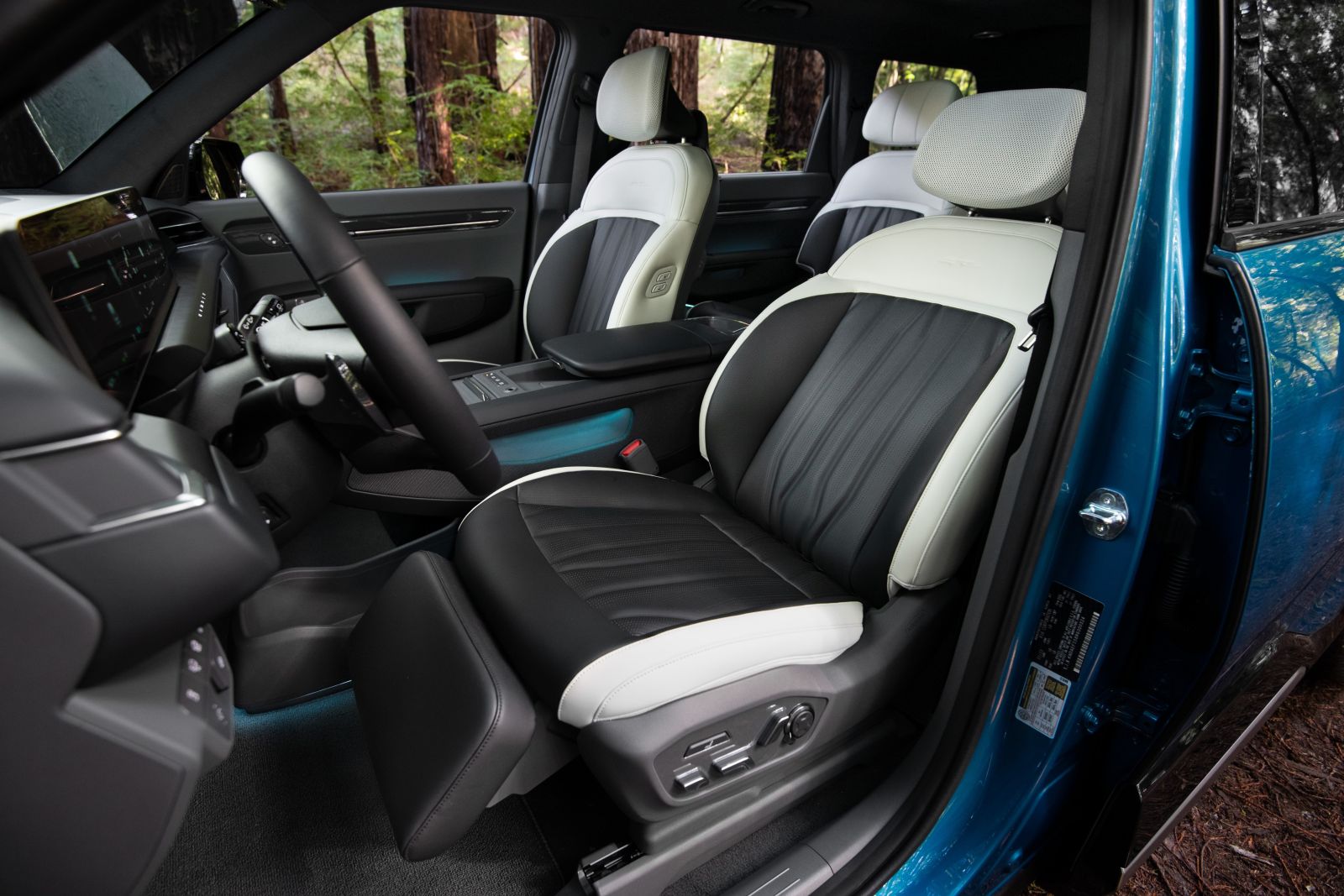

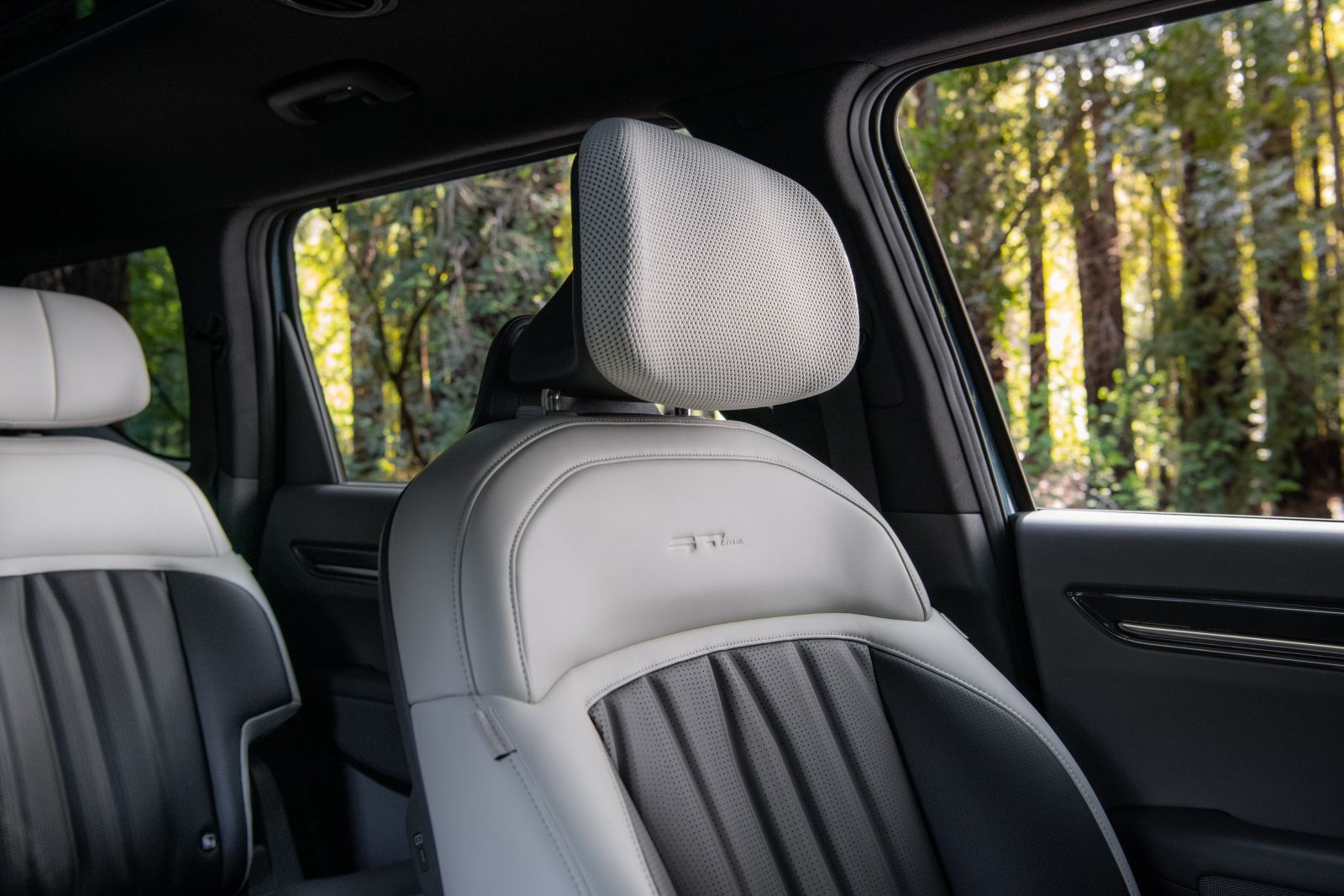

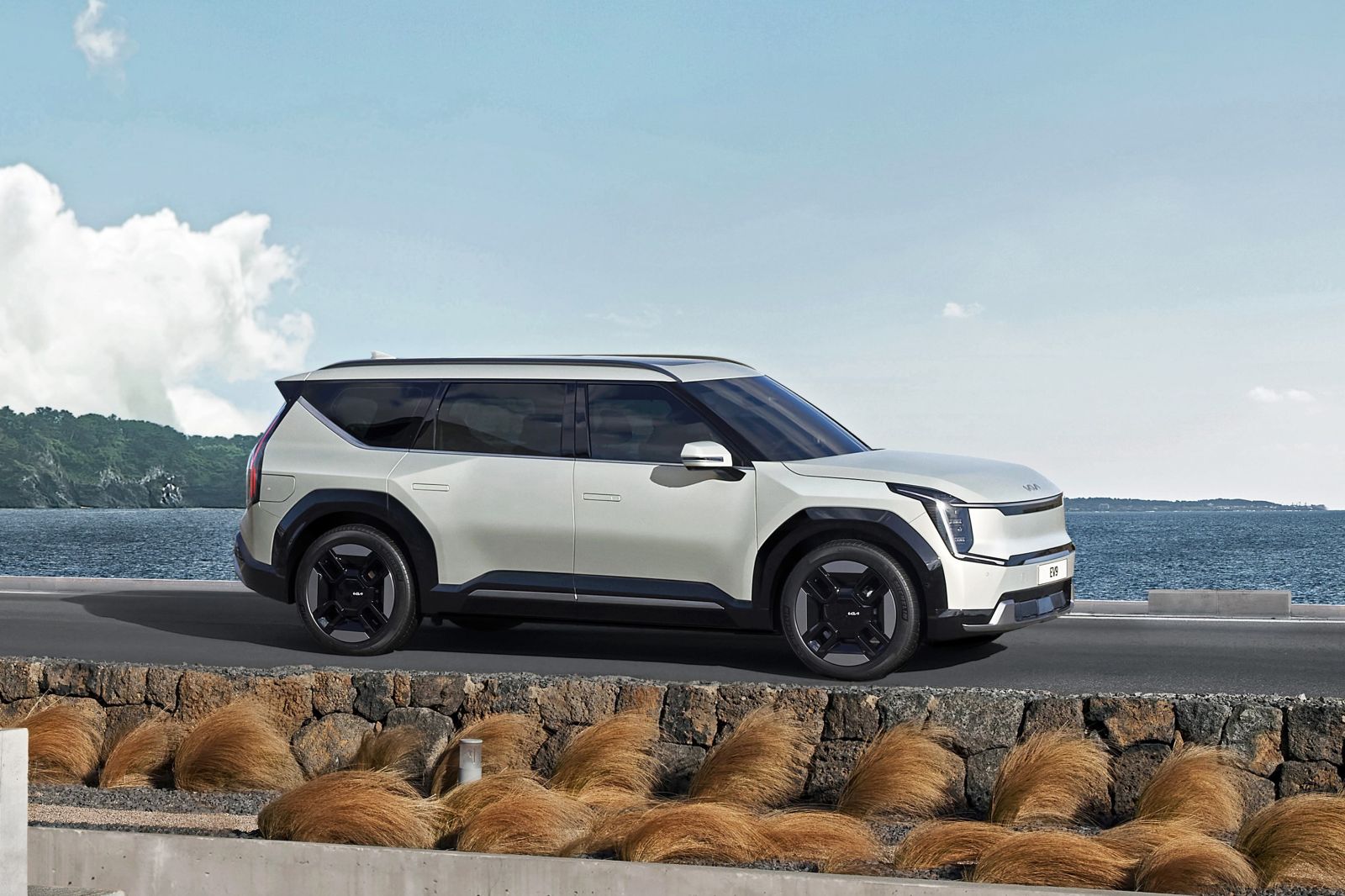

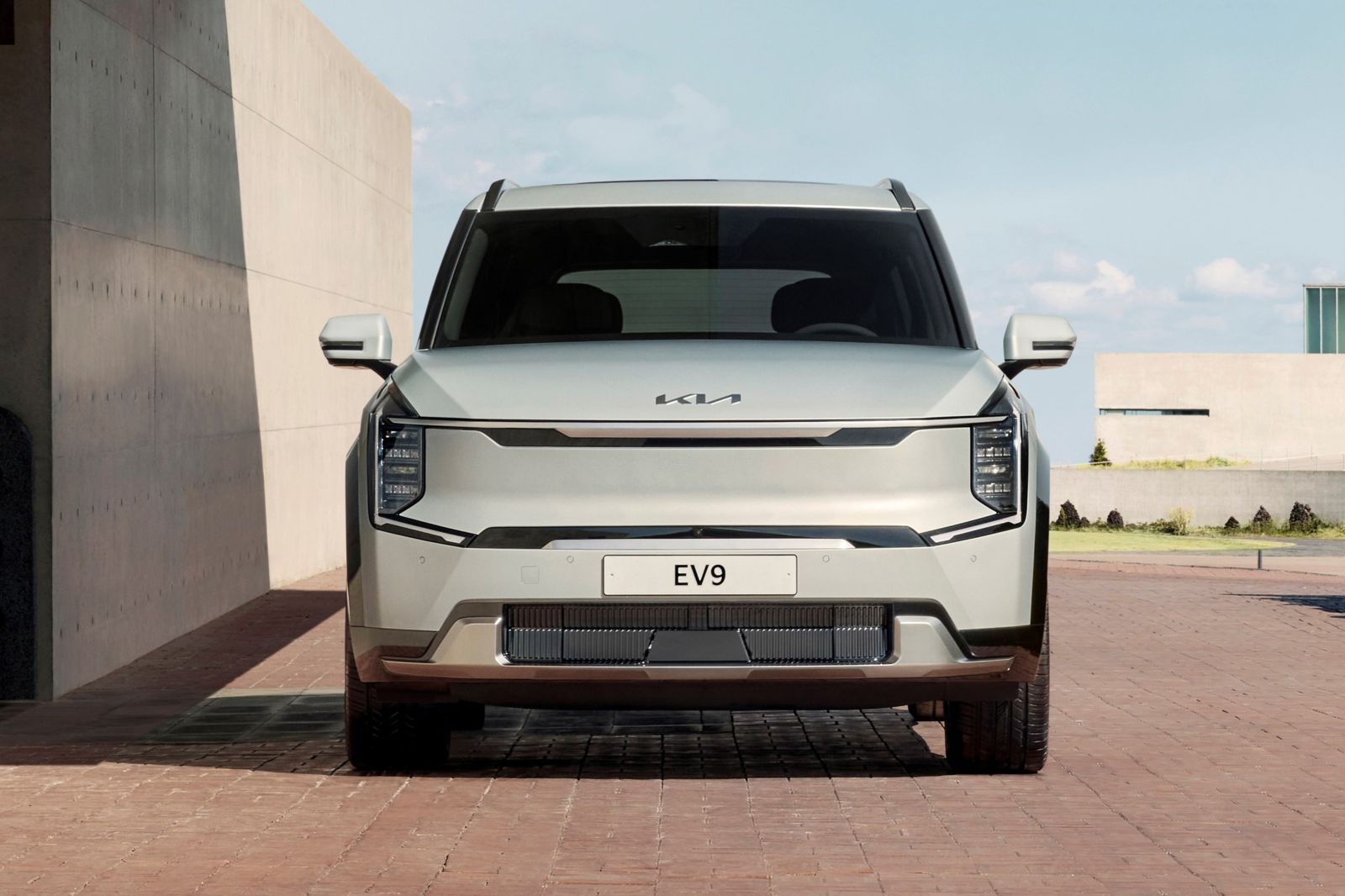

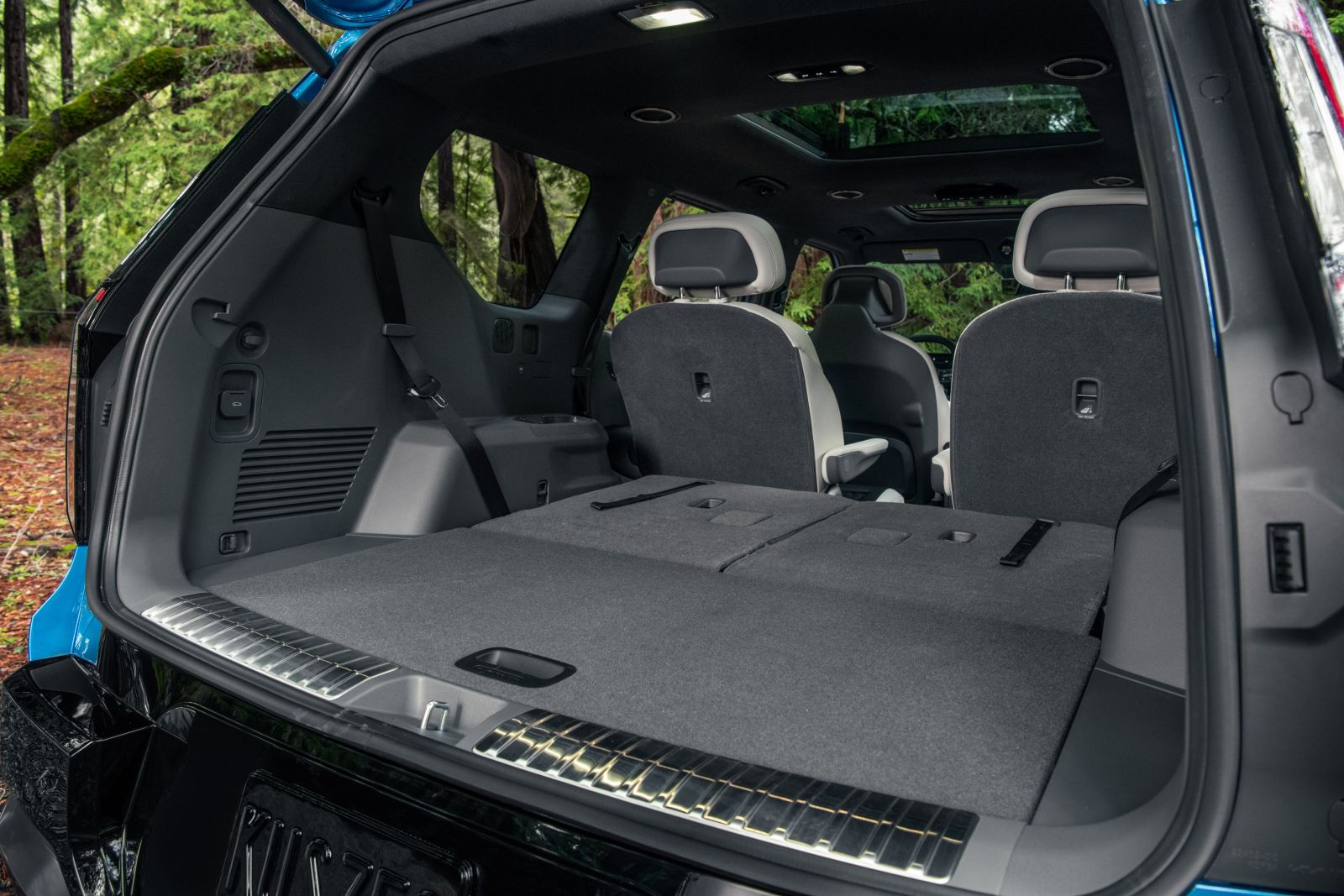

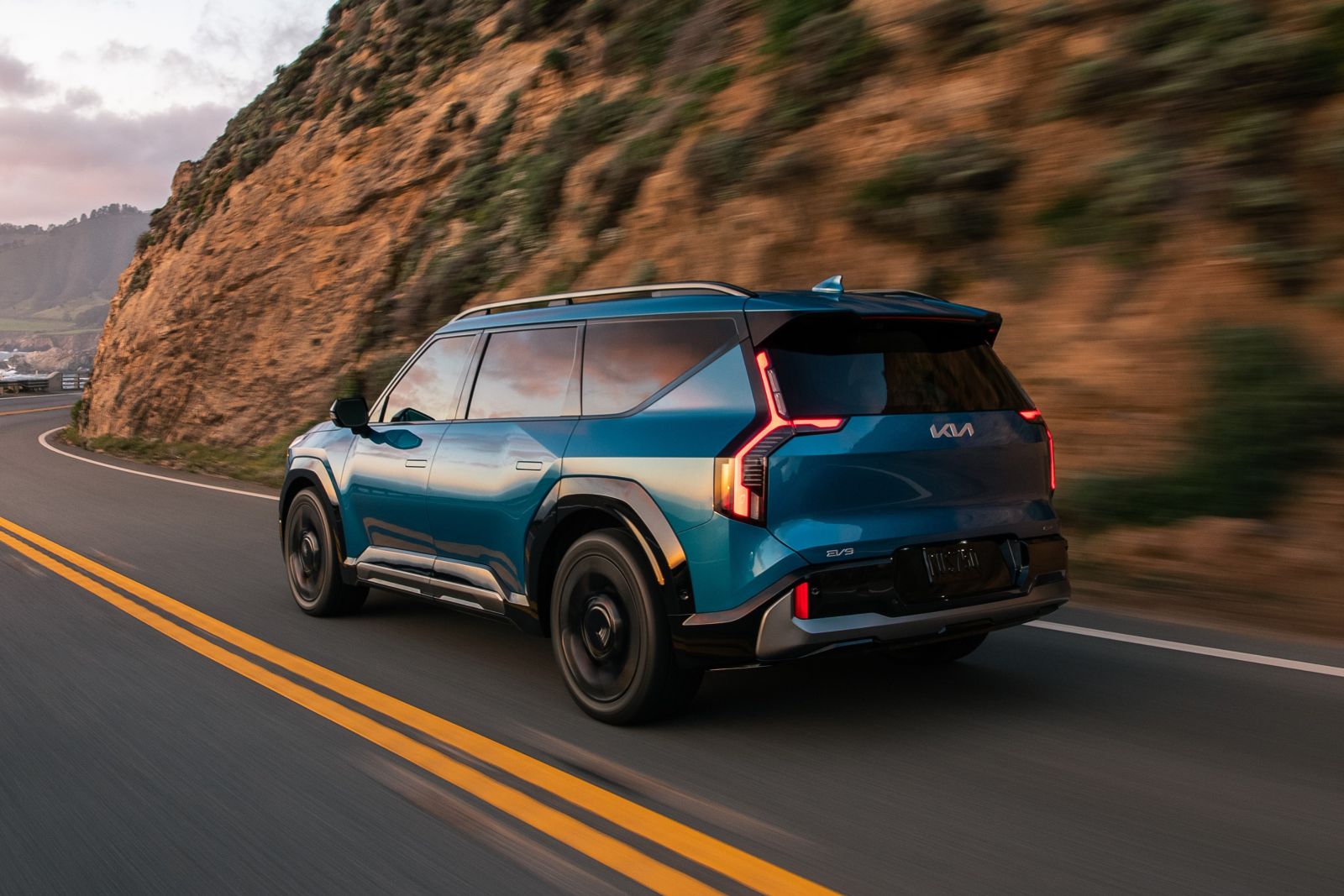

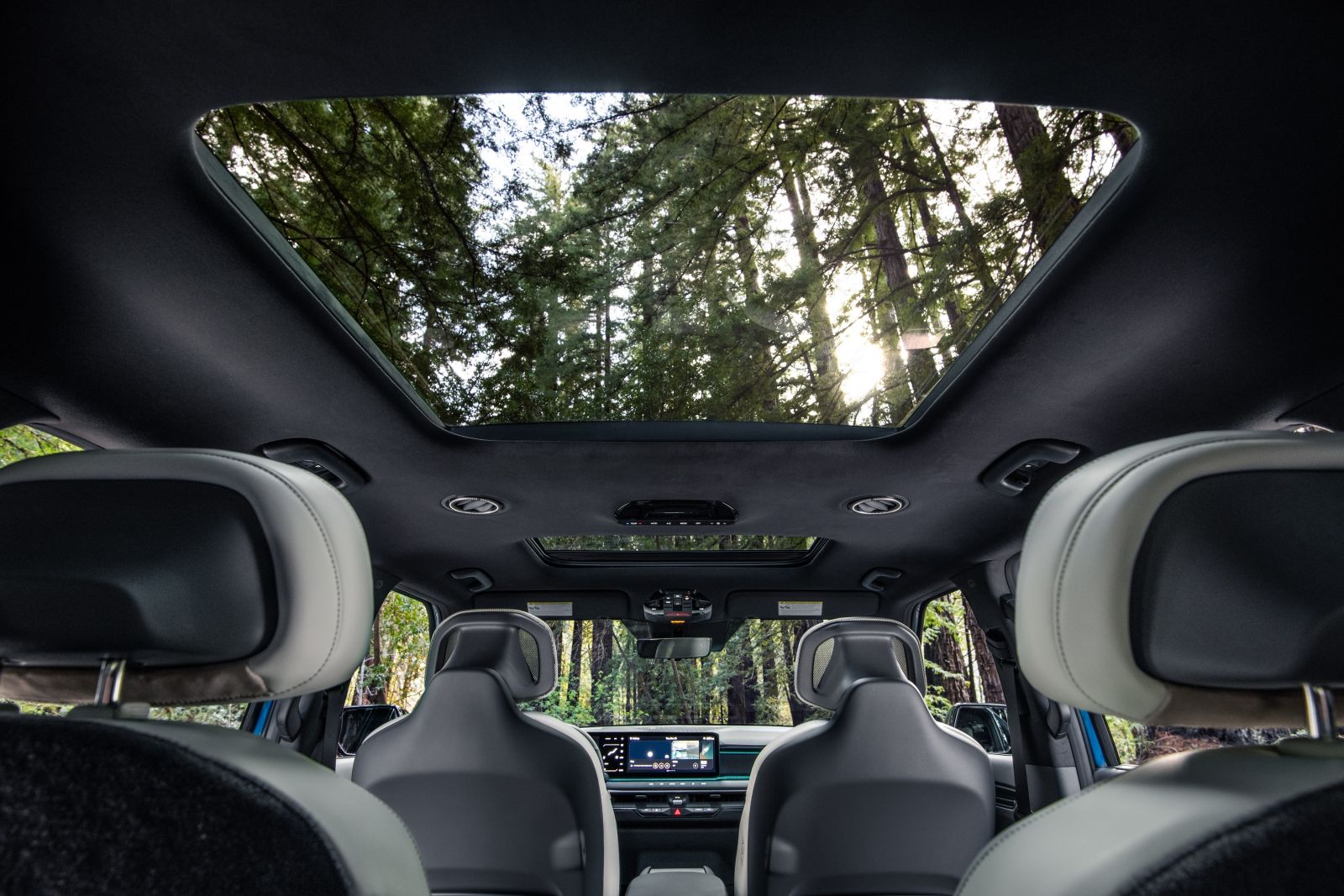

Interior And Exterior Photos

Battery Capacity Gross/Useable 76.1/74 kWh

Range (WLTP) 412 km 256 mi

Minimal Consumption (WLTP) 18.6 kWh/100 km 29.9 kWh/100 mi

Acceleration 0-100 km/h 8.2 s

Acceleration 0-60 mph 8 s

Performance Specs

Power: compare 160 kW (214 hp)
Torque: compare 350 Nm 258 lb-ft
Number of Engines: 1
Drive: compare Rear
Acceleration 0-60 mph: compare 8 s
Acceleration 0-100 km/h: compare 8.2 s
Acceleration 0-62 mph: 8.2 s
Top Speed: compare 185 km/h 115 mph

Official Range and Energy Consumption (Combined)

WLTP Range (TEL*): compare 412 km 256 mi
WLTP Consumption (TEL*): compare 18.6 kWh/100 km 29.9 kWh/100 mi
Petrol/Gasoline equivalent: 2.09 l/100 km 112.6 MPGe

* TEL (Test Energy Low) indicates the lowest values (most economical) with the lightest set of options
TEH (Test Energy High) indicates the highest values (least economical) with the heaviest set of options

Battery

Battery Type: Lithium-ion
Battery Capacity Gross: compare 76.1 kWh
Battery Capacity Useable: compare 74 kWh

Dimensions and Weights

Body Type: SUV
Length: compare 5010 mm 197.24 in
Width: compare 1980 mm 77.95 in
Height: compare 1755 mm 69.09 in
Wheelbase: 3100 mm 122.05 in
Weight: compare 2450 kg 5401 lbs
Max Payload: 569 kg 1254 lbs
Trunk / Boot Space: compare 828 l 29.2 ft³
Trunk / Boot Space Max: 2318 l 81.9 ft³
Frunk Space: compare90 l 3.2 ft³
Max Roof Load: 65 kg 143 lbs
Max Tow Hitch Load: 45 kg 99 lbs
Max Trailer Load Braked: 900 kg 1984 lbs
Max Trailer Load Unbraked: 450 kg 992 lbs
Ground Clearance: compare 177 mm 6.97 in
Min Turning Circle (curb-curb): compare 12.4 m 40.7 ft
Tire Standard: 255/60 R19
Seats max.: 7

Charging

AC On-Board Charger Standard: 11 kW
DC Fast Charging: compare 240 kW
DC Charge Port: CCS
Charge Port Location: Rear Right

AC Charging Times (home, work, hotel)

Select State of Charge (SOC):

The maximum on-board charger power of the Kia EV9 RWD Standard Range is 11 kW.
All figures in the table above are assumed approximate values under optimal conditions.

DC Fast Charging Times

Select State of Charge (SOC):

The maximum fast charging power of the Kia EV9 RWD Standard Range is 240 kW.
All figures in the table above are assumed approximate values under optimal conditions.

Others

Platform: E-GMP
Dedicated EV Platform: Yes
Drag Coefficient Cd: compare 0.28
