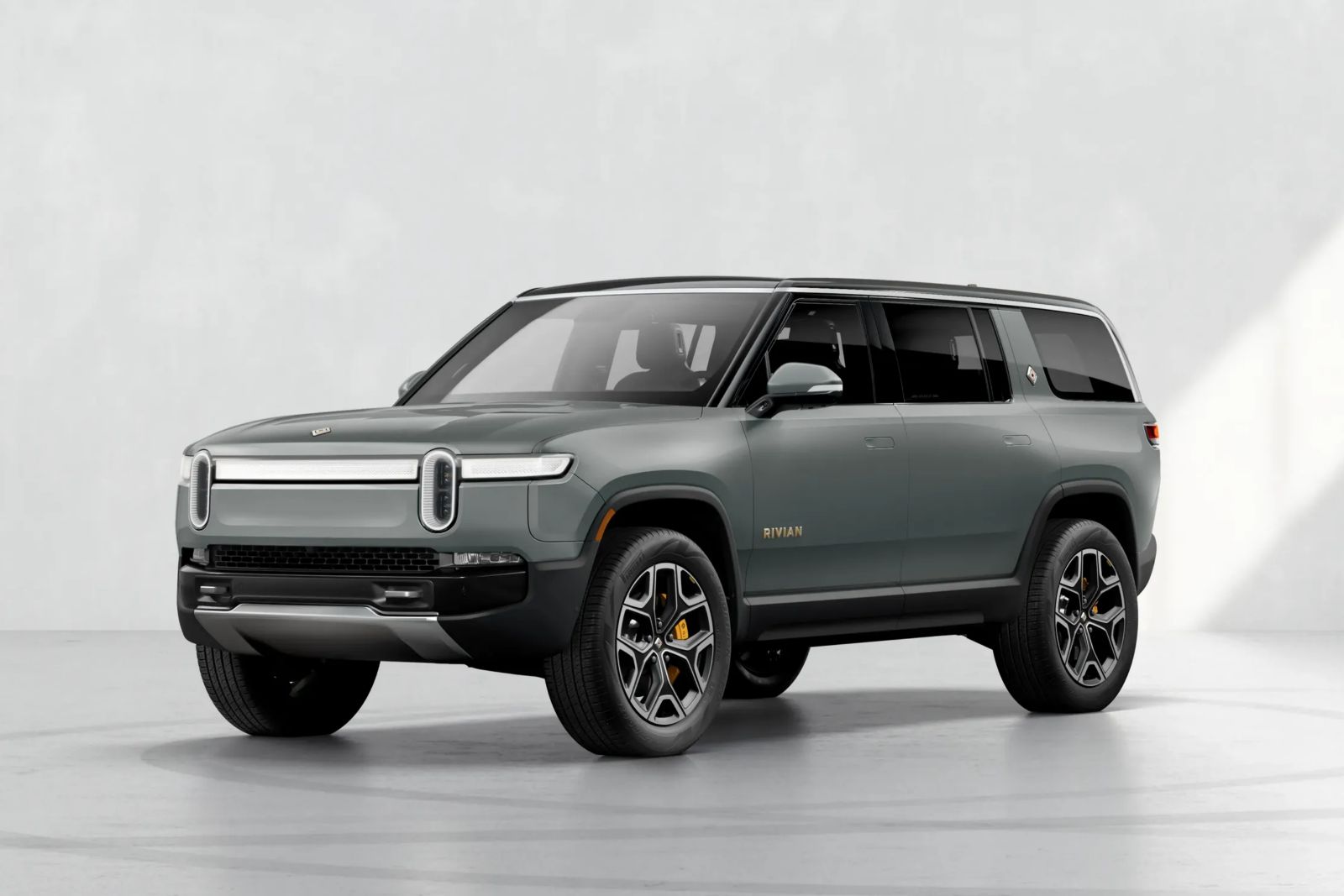

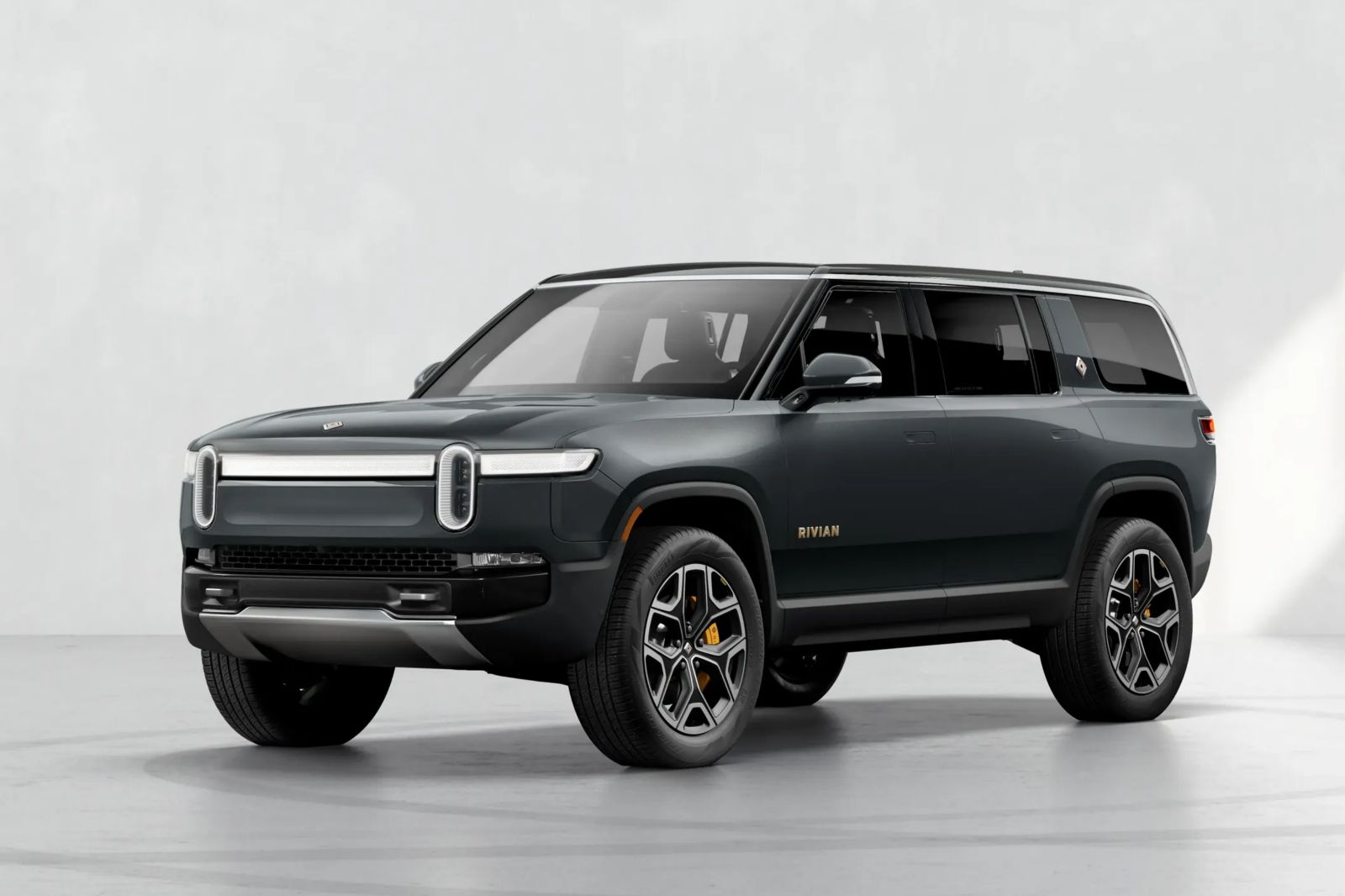

image of Rivian R1S

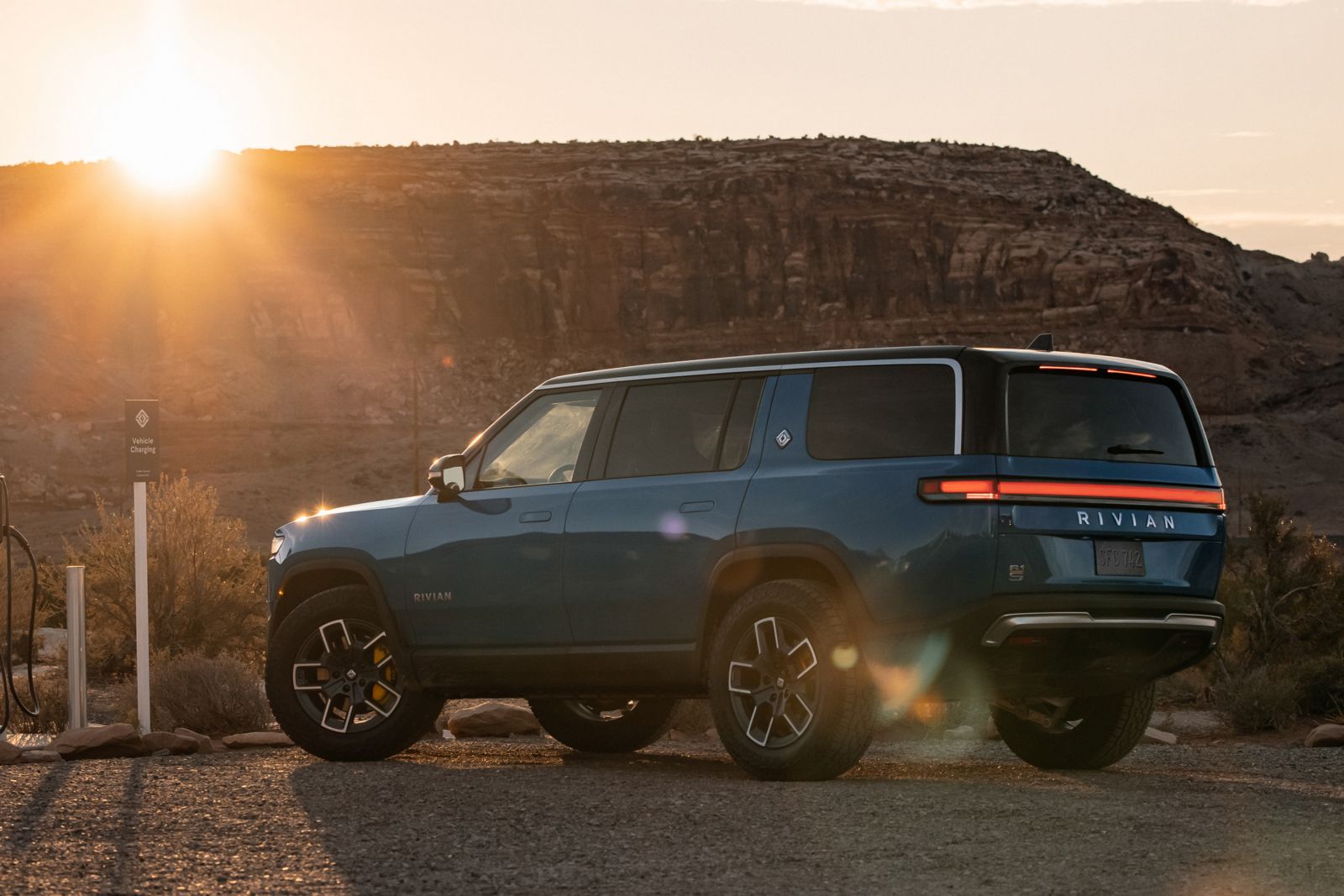

Rivian R1S Quad-Motor AWD Large Pack Tech Specs

from: 2022

other variants:

Compare all variants of the Rivian R1S side by side

Prices

Price in the United States of America (USD)
Base Price (MSRP) Destination Charge Tax Credit Effective Price
$92,000 $1,500 -$7,500 $86,000

Show prices of all variants

Battery Capacity Gross/Useable 135​/​128.9 kWh

Range (WLTP) 505 km 313.8 mi

Minimal Consumption (WLTP) 24.7 kWh/100 km 39.8 kWh/100 mi

Acceleration 0-100 km/h 3.3 s

Acceleration 0-60 mph 3.2 s

At the moment, the car manufacturer provides only a few technical data on this car. As soon as all tech specs is available, we will add it. Some figures are estimated.

Performance Specs

  • Power: compare 620 kW (831 hp)
  • Torque: compare 1120 Nm 826 lb-ft
  • Number of Engines: 4
  • Drive: compare 4x4
  • Acceleration 0-60 mph: compare 3.2 s
  • Acceleration 0-100 km/h: compare 3.3 s
  • Acceleration 0-62 mph: 3.3 s
  • Top Speed: compare 201 km/h 125 mph
  • Quarter Mile (402.3 m): compare 11.6 s

4 AC Permanent-Magnet (one per wheel)

Official Range and Energy Consumption (Combined)

  • WLTP Range (TEL*): compare 505 km 313.8 mi
  • WLTP Consumption (TEL*): compare 24.7 kWh/100 km 39.8 kWh/100 mi
  • Petrol/Gasoline equivalent: 2.78 l/100 km 84.8 MPGe

* TEL (Test Energy Low) indicates the lowest values (most economical) with the lightest set of options
TEH (Test Energy High) indicates the highest values (least economical) with the heaviest set of options

Battery

  • Battery Type: Lithium-ion
  • Battery Capacity Gross: compare 135 kWh
  • Battery Capacity Useable: compare 128.9 kWh

Dimensions and Weights

  • Body Type: SUV
  • Length: compare 5131 mm 202.01 in
  • Width: compare 2007 mm 79.02 in
  • Height: compare 1829 mm 72.01 in
  • Wheelbase: 3073 mm 120.98 in
  • Weight: compare 2650 kg 5842 lbs
  • Max Payload: 770 kg 1698 lbs
  • Luggage Capacity Max: 2491 l 88 ft3

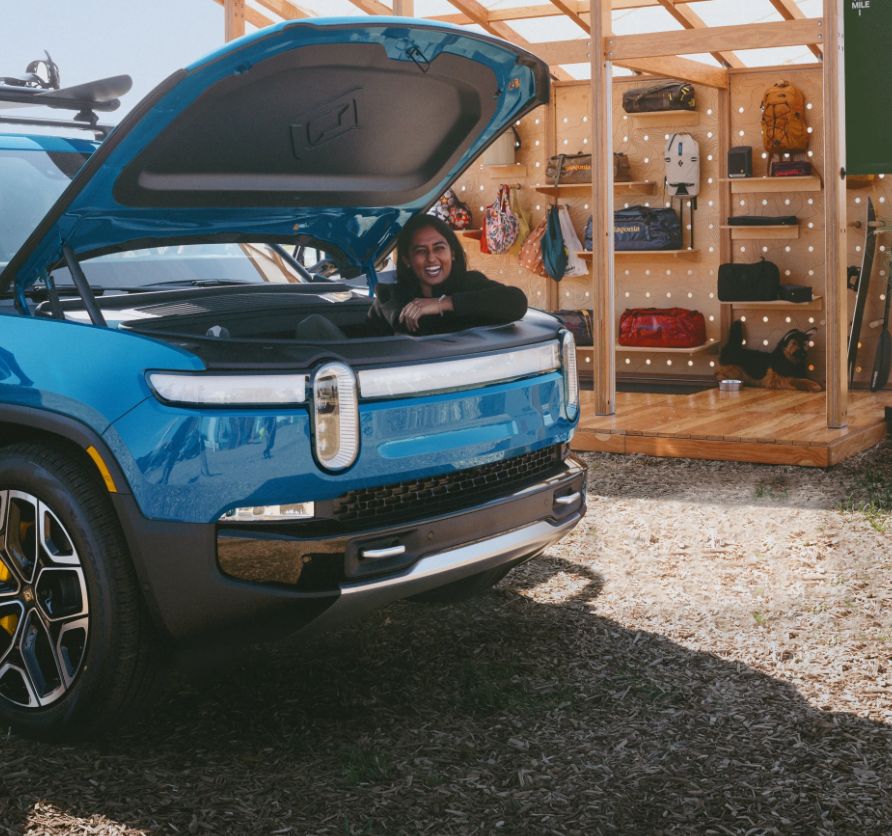

  • Frunk Capacity: compare314 l 11.1 ft3
  • Max Trailer Load Braked: 3492 kg 7699 lbs
  • Ground Clearance: compare 378 mm 14.88 in
  • Min Turning Circle (curb-curb): compare 13.2 m 43.3 ft
  • Tire Standard: 275/55 R21
  • Seats max.: 7

Charging

  • AC On-Board Charger Standard: 11.5 kW
  • DC Fast Charging: compare 220 kW
  • DC Charge Port: CCS
  • Charge Port Location: Front Left

AC Charging Times (home, work, hotel)

Select State of Charge (SOC):

The maximum on-board charger power of the Rivian R1S Quad-Motor AWD Large Pack is 11.5 kW.
All figures in the table above are assumed approximate values under optimal conditions.

DC Fast Charging Times

Select State of Charge (SOC):

The maximum fast charging power of the Rivian R1S Quad-Motor AWD Large Pack is 220 kW.
All figures in the table above are assumed approximate values under optimal conditions.

Others

  • Platform: Rivian skateboard platform
  • Dedicated EV Platform: Yes
