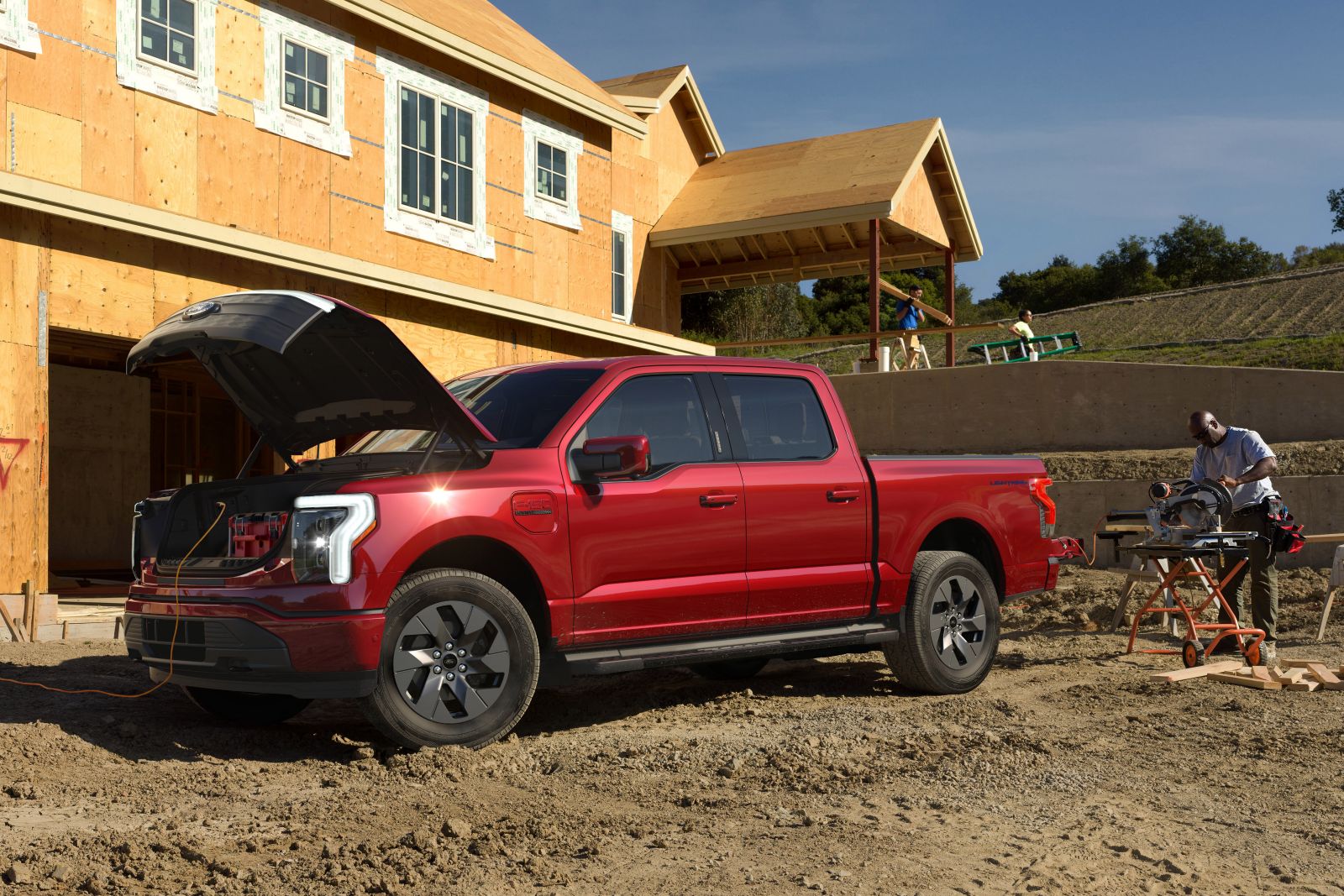

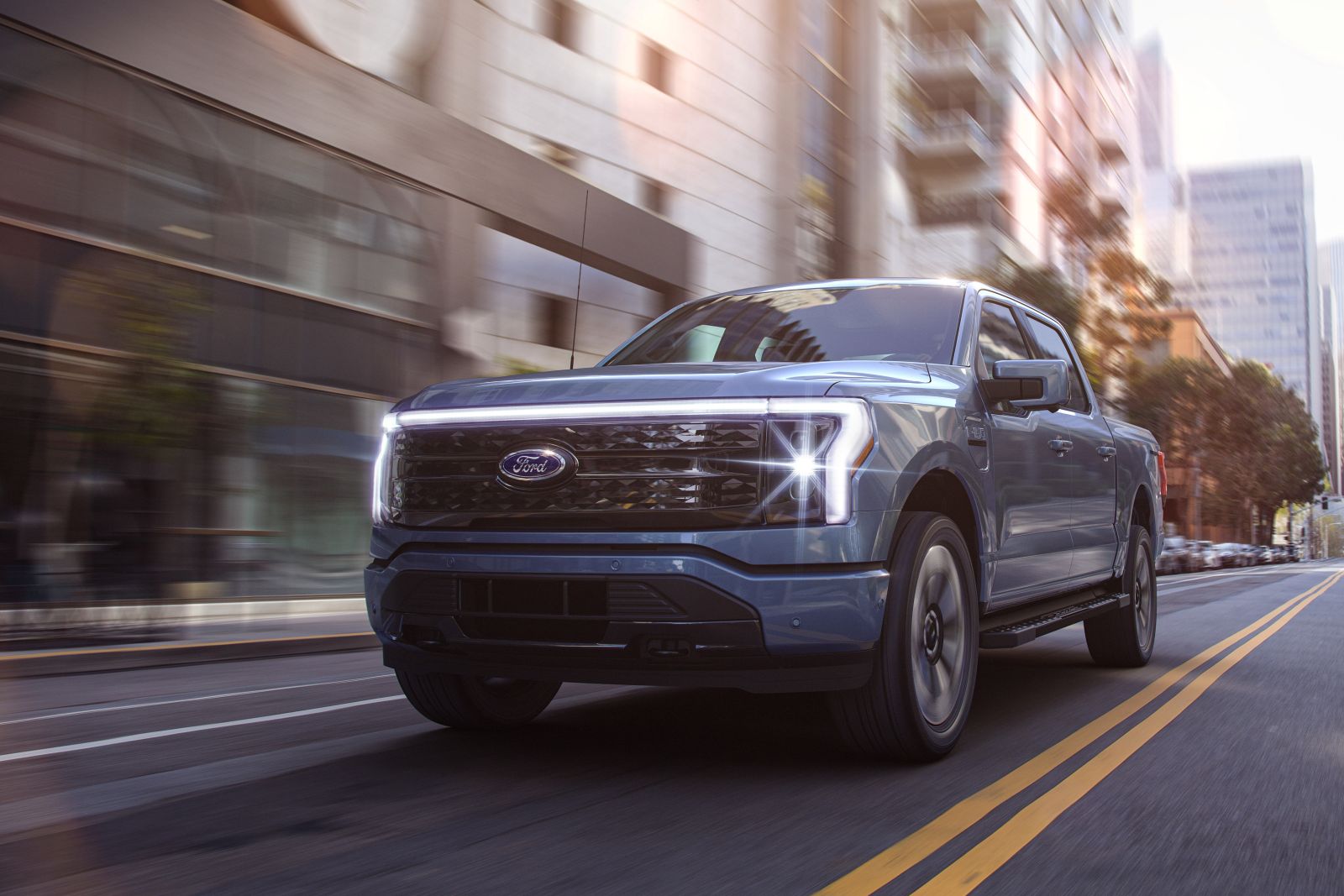

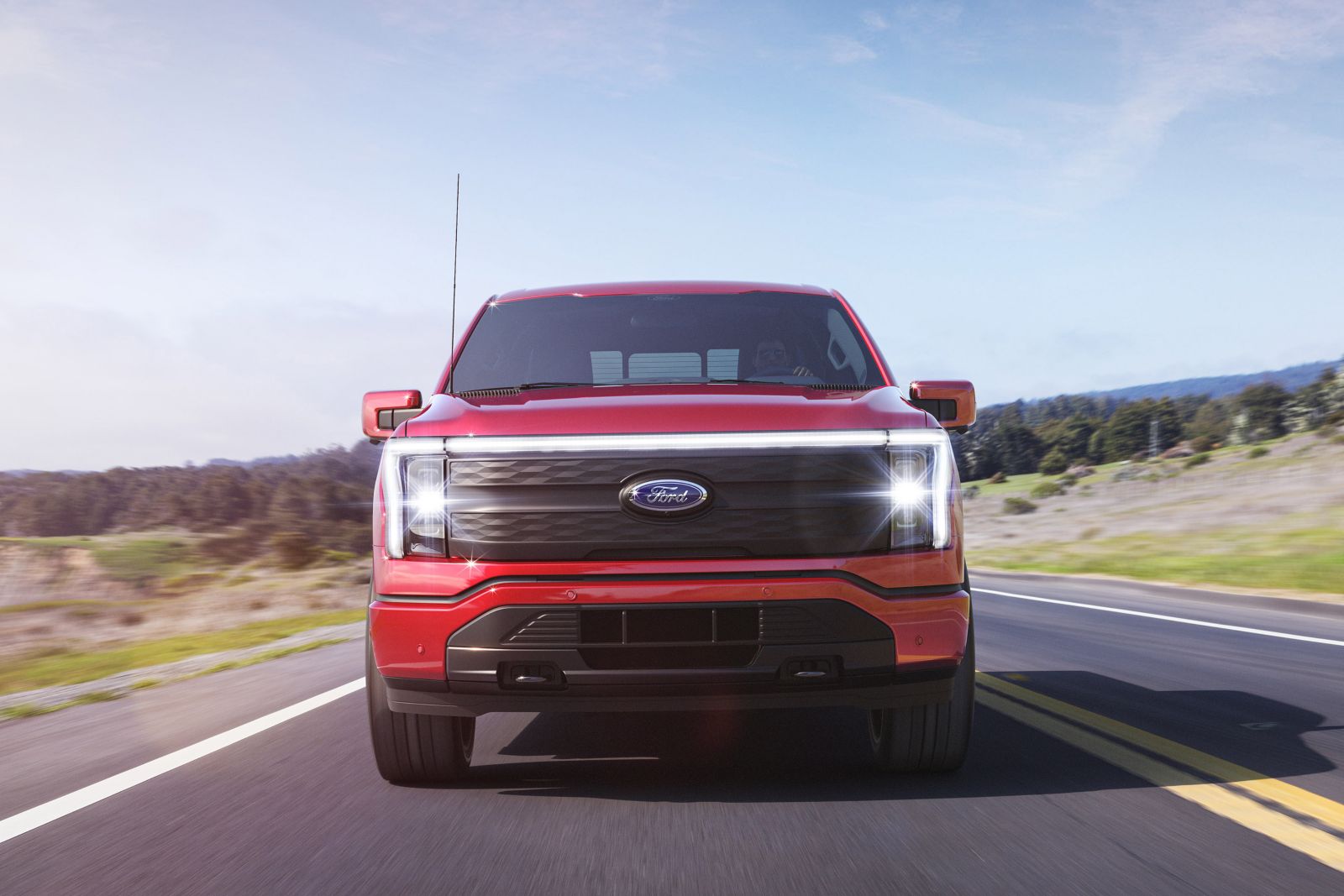

image of Ford F-150 Lightning

Ford F-150 Lightning Standard Range Tech Specs

from: 2021

other variants:

Compare all variants of the Ford F-150 Lightning side by side

Battery Capacity Gross/Useable 108​/​98 kWh

Range (WLTP) 386 km 239.8 mi

Minimal Consumption (WLTP) 25.3 kWh/100 km 40.7 kWh/100 mi

Approach Angle (degrees) 25.4, Departue Angle (degrees) 24.2, Breakover Angle (degrees) 17.8

Performance Specs

  • Power: compare 337 kW (452 hp)
  • Torque: compare 1050 Nm 774 lb-ft
  • Number of Engines: 2
  • Drive: compare 4x4
  • Top Speed: compare 177 km/h 110 mph

Official Range and Energy Consumption (Combined)

  • WLTP Range (TEL*): compare 386 km 239.8 mi
  • WLTP Consumption (TEL*): compare 25.3 kWh/100 km 40.7 kWh/100 mi
  • Petrol/Gasoline equivalent: 2.85 l/100 km 82.8 MPGe

* TEL (Test Energy Low) indicates the lowest values (most economical) with the lightest set of options
TEH (Test Energy High) indicates the highest values (least economical) with the heaviest set of options

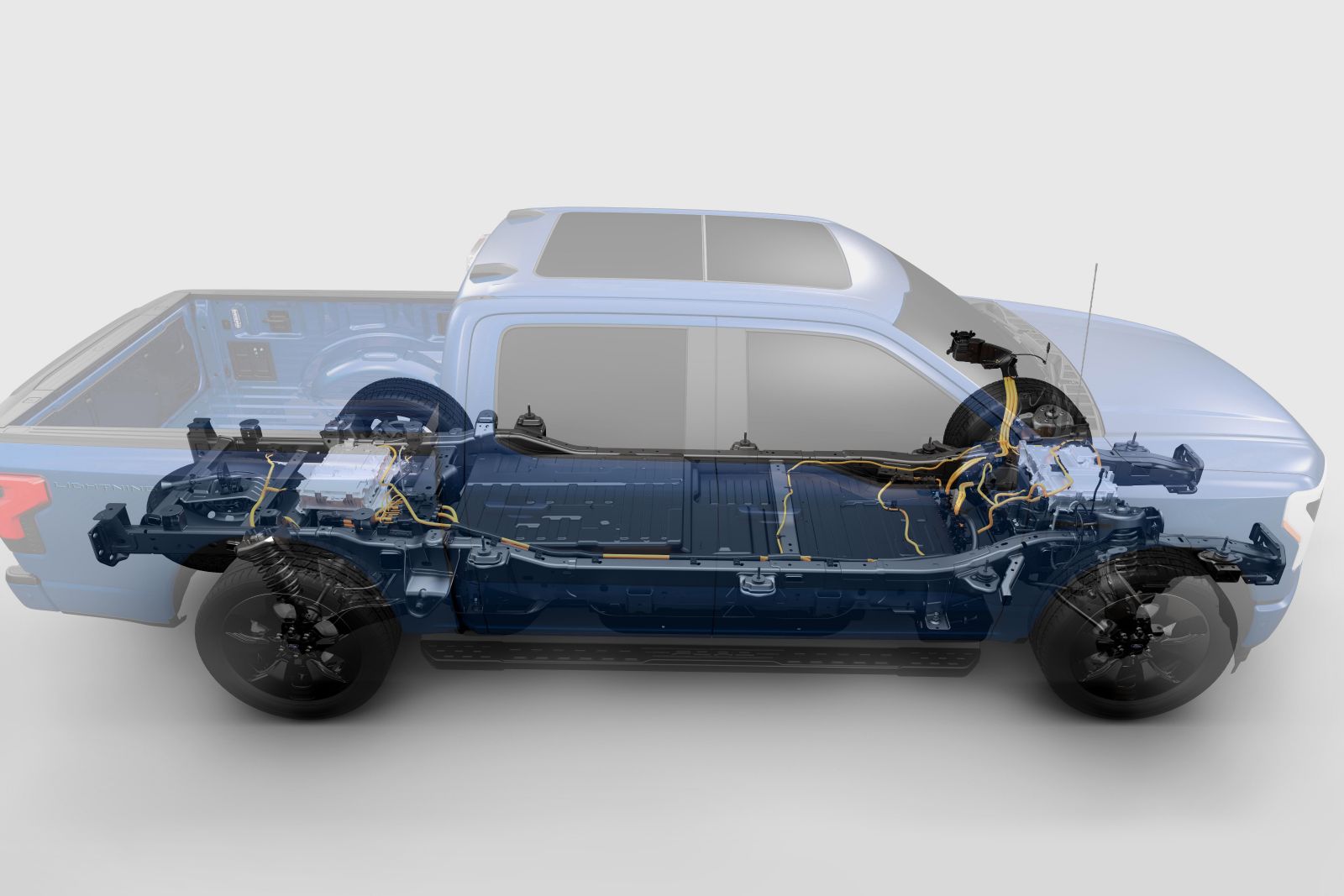

Battery

  • Battery Type: Lithium-ion
  • Battery Capacity Gross: compare 108 kWh
  • Battery Capacity Useable: compare 98 kWh

Dimensions and Weights

  • Body Type: Pick-up
  • Length: compare 5911 mm 232.72 in
  • Width: compare 2032 mm 80 in
  • Height: compare 2004 mm 78.9 in
  • Wheelbase: 3696 mm 145.51 in
  • Max Payload: 907 kg 2000 lbs
  • Luggage Capacity: compare 1495 l 52.8 ft3

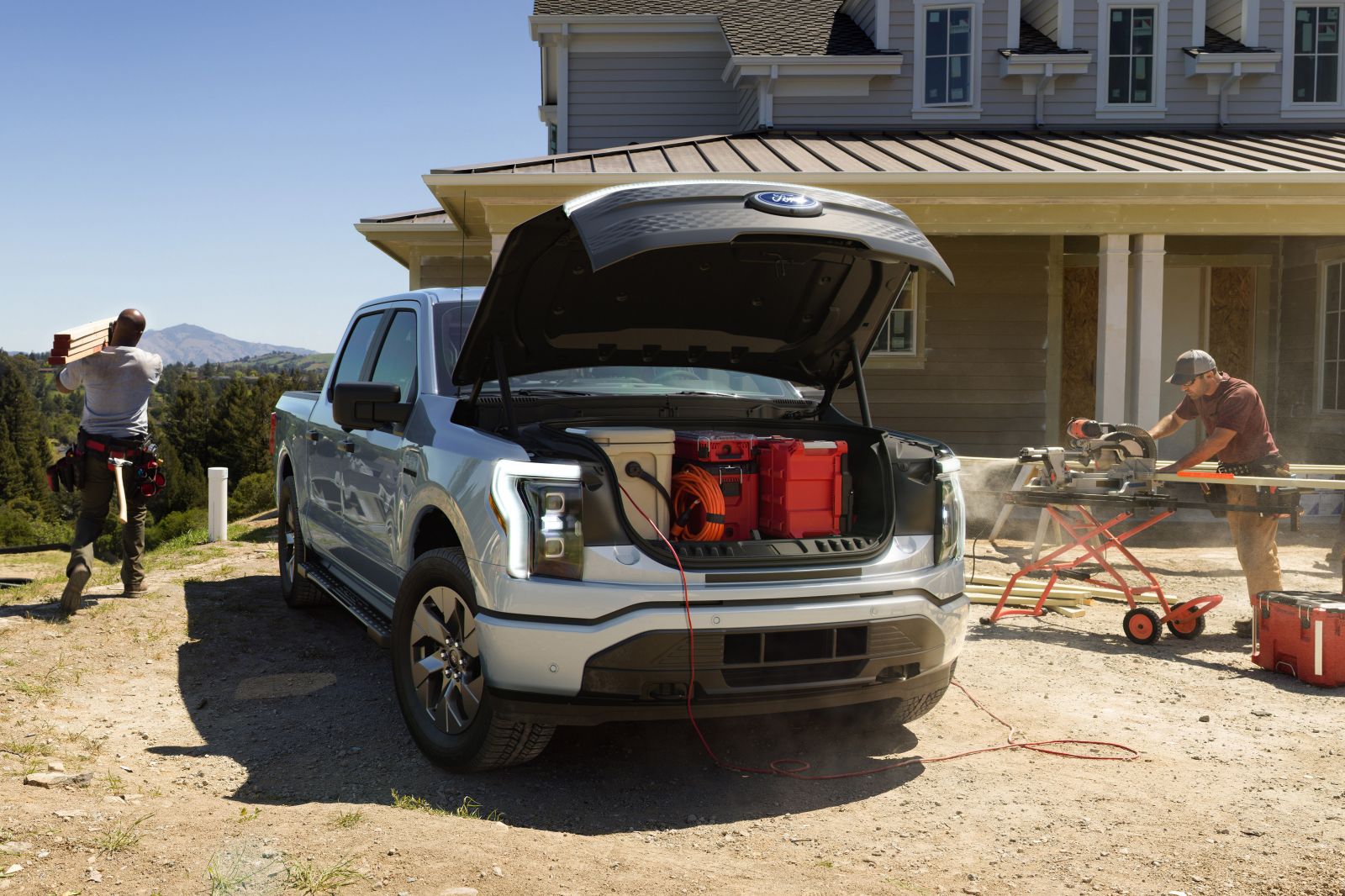

  • Frunk Capacity: compare400 l 14.1 ft3

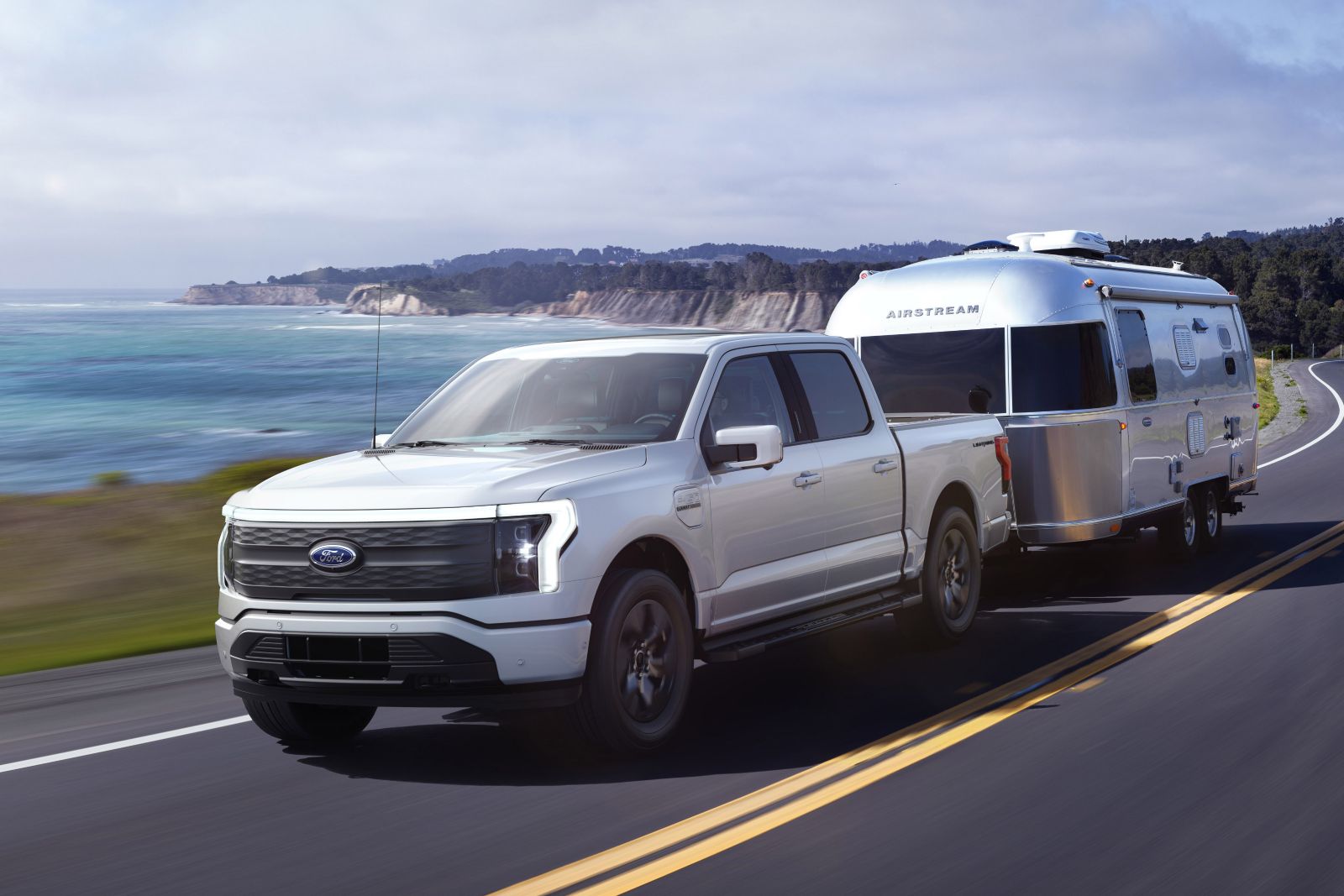

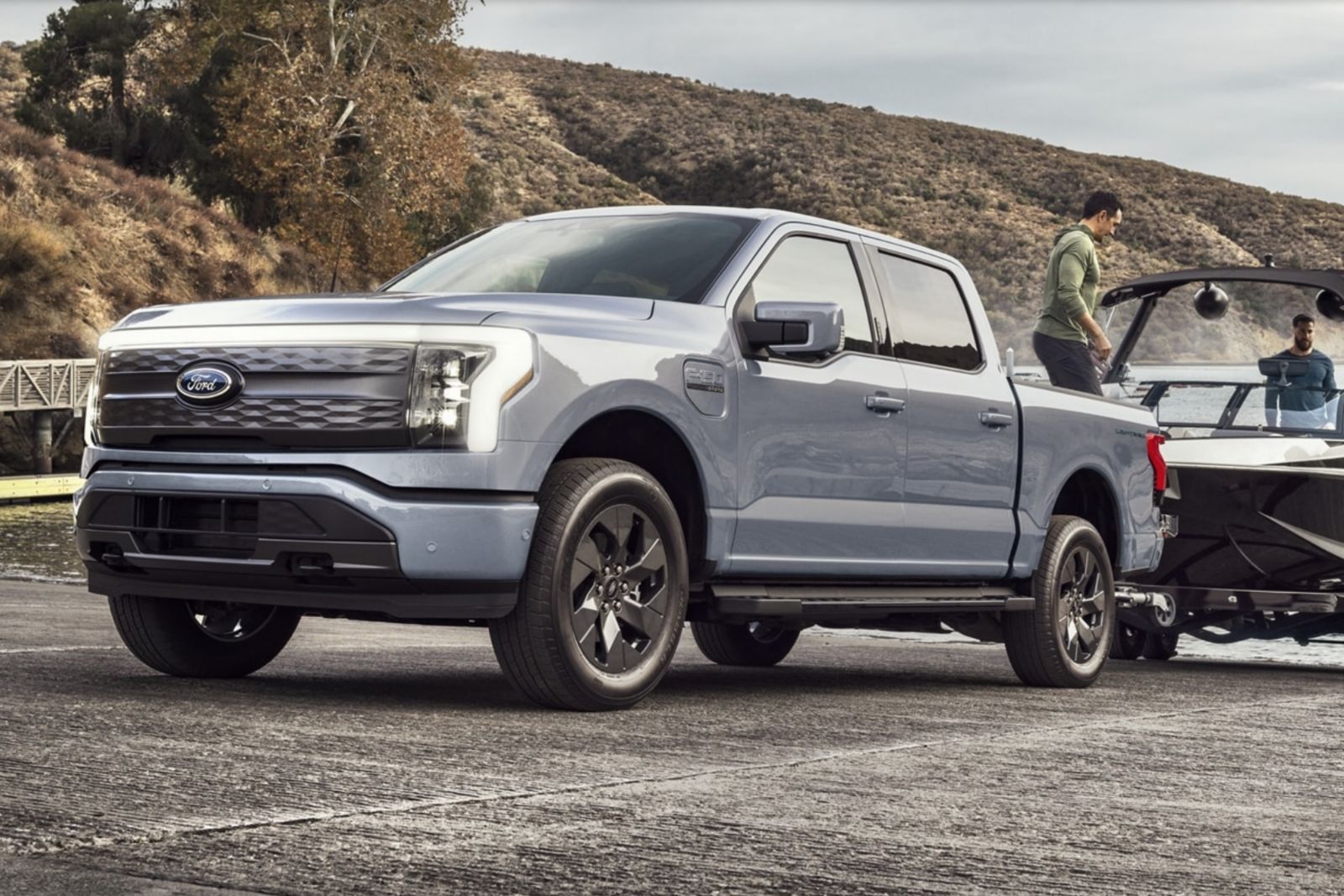

  • Max Trailer Load Braked: 3493 kg 7701 lbs
  • Ground Clearance: compare 226 mm 8.9 in
  • Min Turning Circle (curb-curb): compare 15.6 m 51.2 ft
  • Tire Standard: 295/45 R18
  • Seats max.: 5

Charging

  • AC On-Board Charger Standard: 11.3 kW
  • DC Fast Charging: compare 150 kW

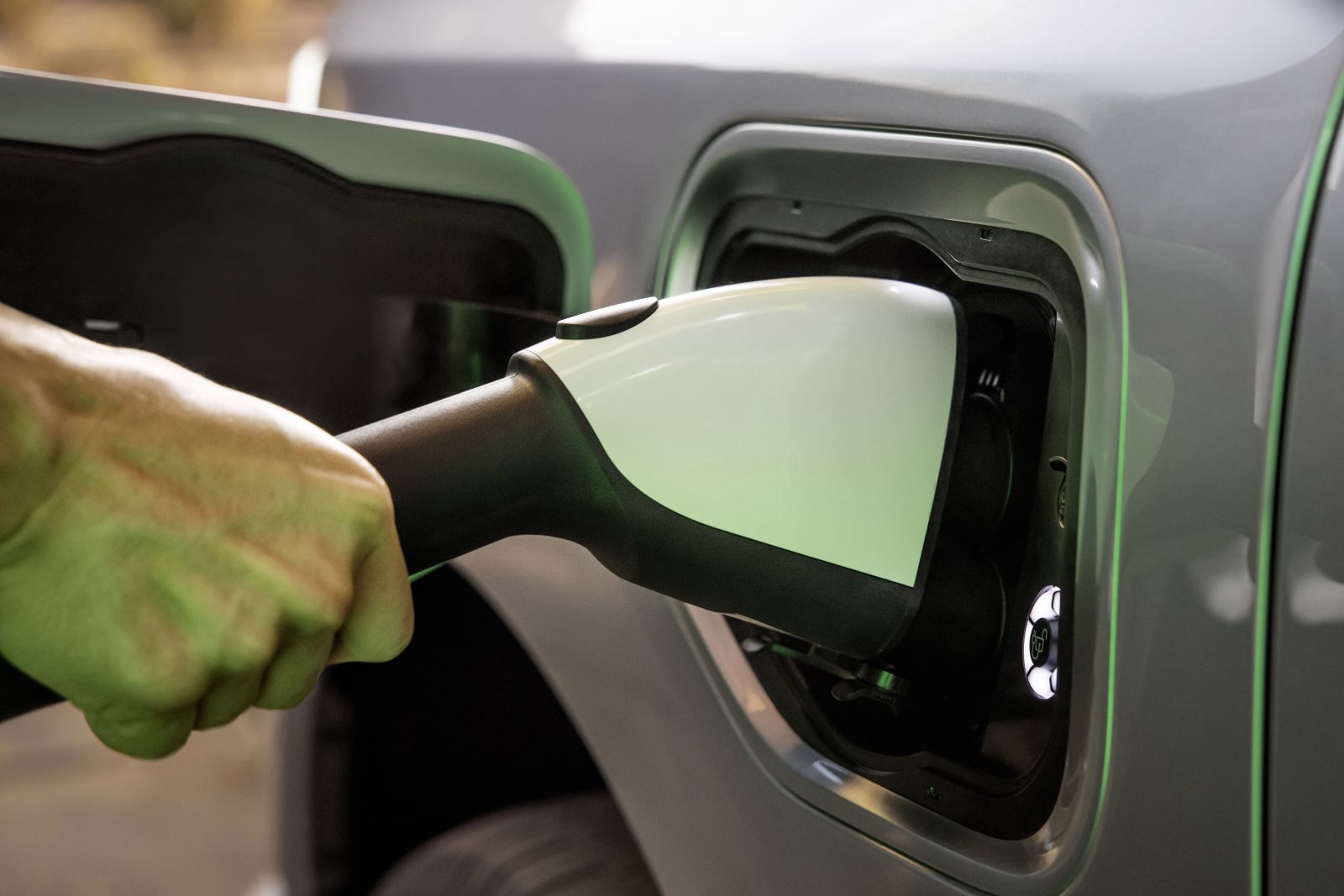

  • DC Charge Port: CCS
  • Charge Port Location: Front Left

AC Charging Times (home, work, hotel)

Select State of Charge (SOC):

The maximum on-board charger power of the Ford F-150 Lightning Standard Range is 11.3 kW.
All figures in the table above are assumed approximate values under optimal conditions.

DC Fast Charging Times

Select State of Charge (SOC):

The maximum fast charging power of the Ford F-150 Lightning Standard Range is 150 kW.
All figures in the table above are assumed approximate values under optimal conditions.

Others

  • Platform: TE1
  • Dedicated EV Platform: Yes
  • Drag Coefficient Cd: compare 0.56
